| Quantity: | |
|---|---|
| Standard | ||||

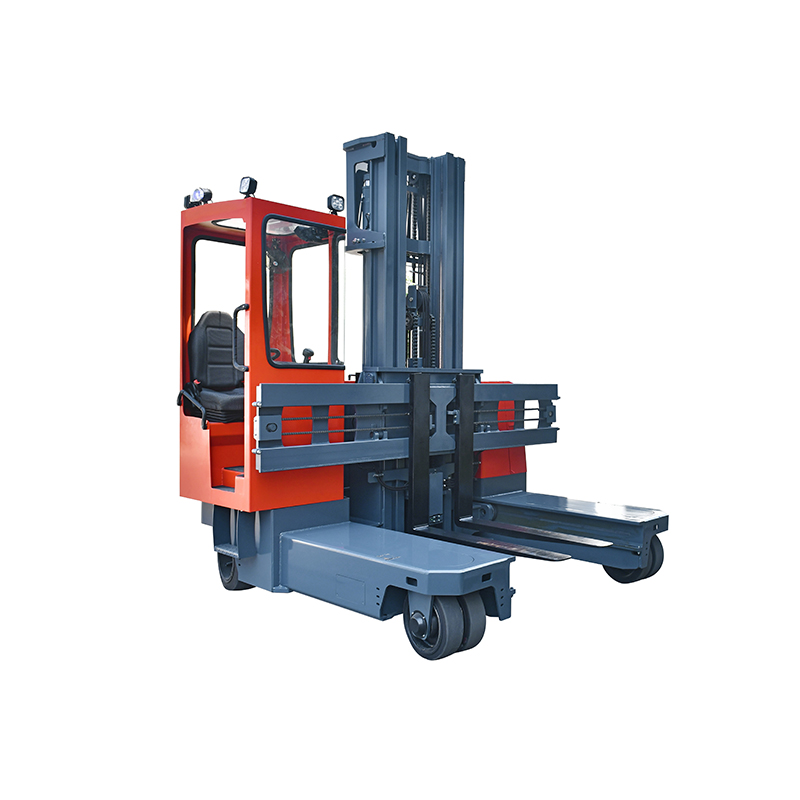

| 1.1 | Model | MQC45 | MQC50 | |
| 1.2 | Power type | Battery | Battery | |
| 1.3 | Operation type | Seated | Seated | |

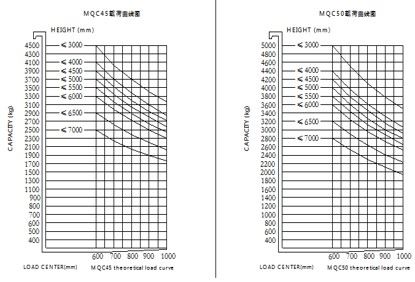

| 1.4 | Rated load | Q(kg) | 4500 | 5000 |
| 1.5 | Load center | C(mm) | 600 | 600 |
| 1.6 | Front overhang | x(mm) | 330 | 330 |
| 1.7 | Wheelbase | y(mm) | 1800 | 1800 |
| Weight | ||||
| 2.1 | Service weight(incl.battery) | kg | 7750② | 7750② |
| Wheel | ||||
| 3.1 | Wheel type | Rubber solid wheel | Rubber solid wheel / PU wheel | |
| 3.2 | Load wheel size | mm | 15×5-11.25/φ381×127 | φ377×110 |
| 3.3 | Drive wheel size | mm | 18×9-12.125/φ457×229 | 18×9-12.125/φ457×229 |
| 3.4 | Number of wheels, front/rear(x=drive wheel) | 4 / 2X | 4 / 2X | |
| 3.5 | Wheel tread, drive side | b10(mm) | 2050 | 2050 |
| 3.6 | Wheel tread, load side | b11(mm) | 1964 | 1964 |
| Size | ||||
| 4.1 | Mast tilting | α/β(°) | 2/4 | 2/4 |

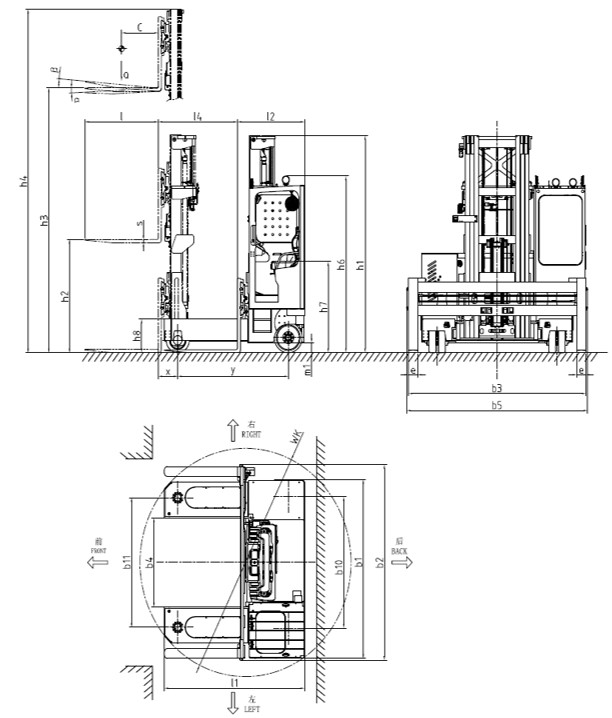

| 4.2 | Mast closed height | h1(mm) | 3125 | 3125 |
| 4.3 | Free lift height | h2(mm) | 1975 | 1975 |
| 4.4 | Lift height | h3(mm) | 6000 | 6000 |
| 4.5 | Mast extended height with load-backrest | h4(mm) | 7135 | 7135 |
| 4.6 | Cabin height(with light/without light) | h6(mm) | 2680/2550 | 2680/2550 |
| 4.7 | Seat height | h7(mm) | 1375 | 1375 |
| 4.8 | Leg height | h8(mm) | 500 | 500 |
| 4.9 | Overall length | l1(mm) | 2300 | 2300 |
| 4.10 | Overall width | b1/b2(mm) | 2710/2960 | 2710/2960 |
| 4.11 | No-load turn around diameter | WK(mm) | 3400 | 3400 |
| 4.12 | Fork size | l/e/s(mm) | 1200/150/50 | 1200/150/50 |
| 4.13 | Fork carriage width | b5(mm) | 2960 | 2960 |
| 4.14 | Fork outside width | b3(mm) | 610～2900 | 610～2900 |
| 4.15 | Inner leg width | b4(mm) | 1340 | 1340 |
| 4.16 | Reach stroke | l4(mm) | 1300 | 1300 |
| 4.17 | Min ground clearance | m1(mm) | 150 | 150 |
| Function | ||||
| 5.1 | Straight driving speed,load/unloaded | km/h | 6/7 | 6/7 |
| 5.2 | Side driving speed,load/unloaded | mm/s | 7/8 | 7/8 |
| 5.3 | Lifting speed,load/unloaded | mm/s | 180/250 | 180/250 |
| 5.4 | Lowering speed,load/unloaded | mm/s | 150/100 | 150/100 |
| 5.5 | Straight Max Gradeability, Load/Unloaded(S2-5min) | %(tanθ ) | 8/8 | 8/8 |
| 5.6 | Side Max Gradeability, Load/Unloaded(S2-5min) | %(tanθ ) | 8/8 | 8/8 |
| 5.7 | Braking method | Electromagnetic | Electromagnetic | |
| Drive | ||||
| 6.1 | Drive motor power (S2-60min) | kw | 7AC | 7AC |
| 6.2 | Lift motor power, (S3-15%) | kw | 21AC | 21AC |
| 6.3 | Lead acid battery, voltage/capacity | V/Ah | 80/500 | 80/500 |
| 6.4 | Battery weight | kg | 1342 | 1342 |
| 6.5 | Steering system | EPS | EPS | |
| Others | ||||
| 7.1 | Battery replacement | Hoisting | Hoisting | |
Remarks:
Standard equipped with adjustable distance fork, fork sensing function is optional.
Standard model data, varies according to the configuration.
