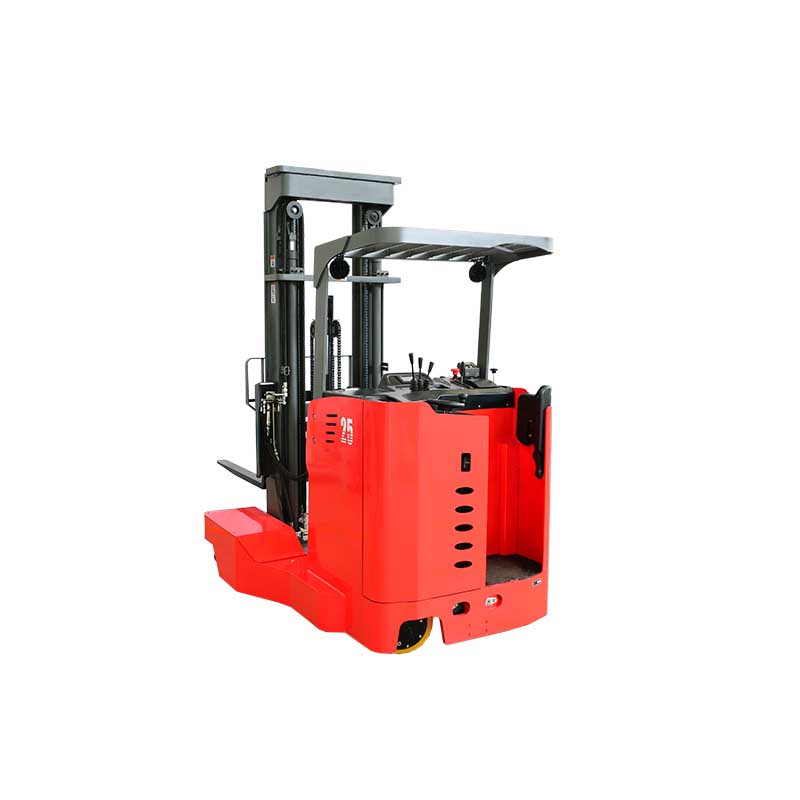

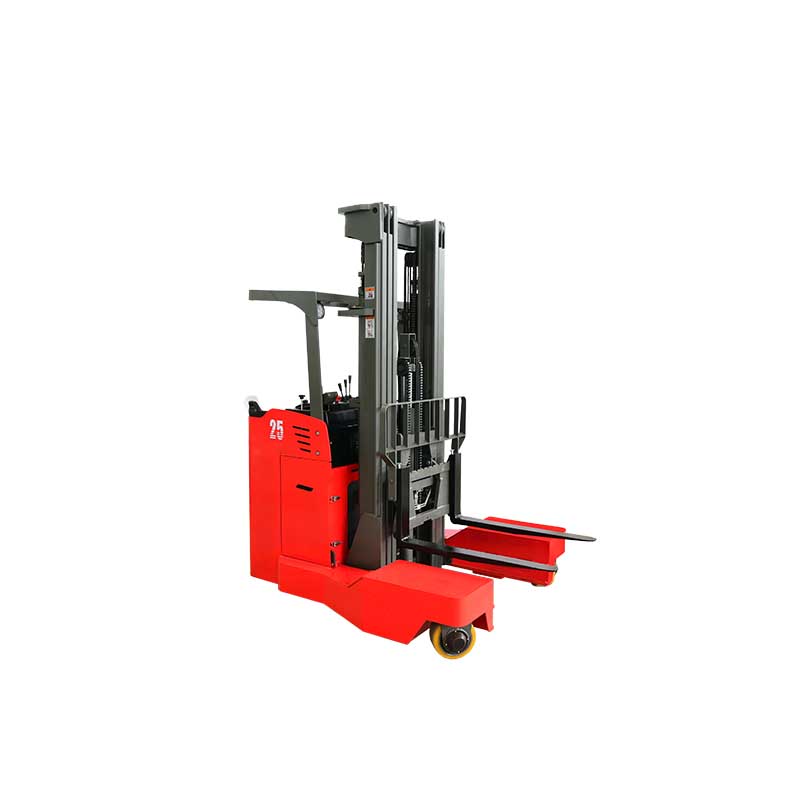

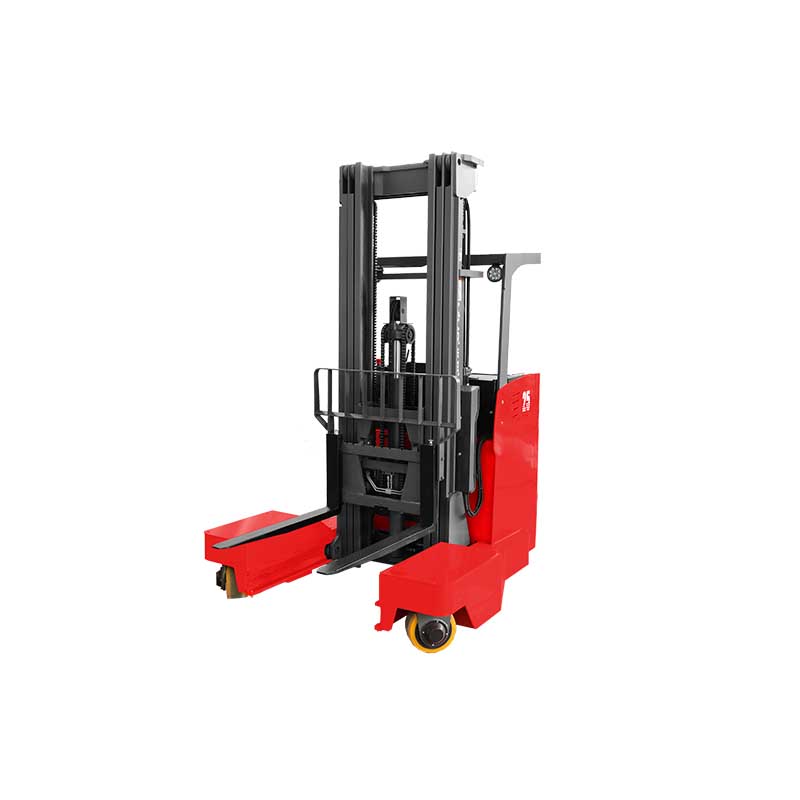

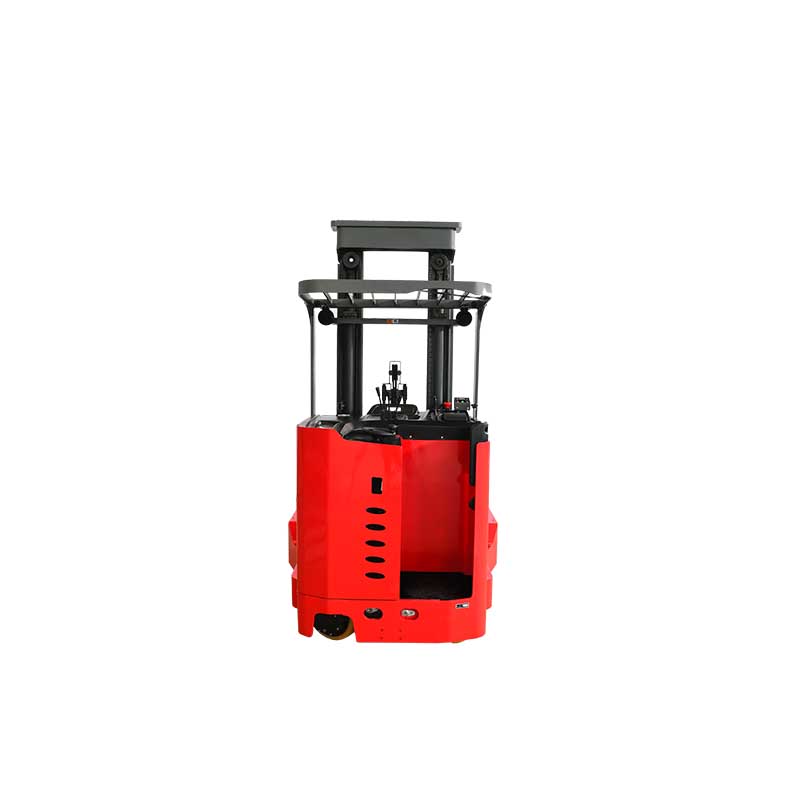

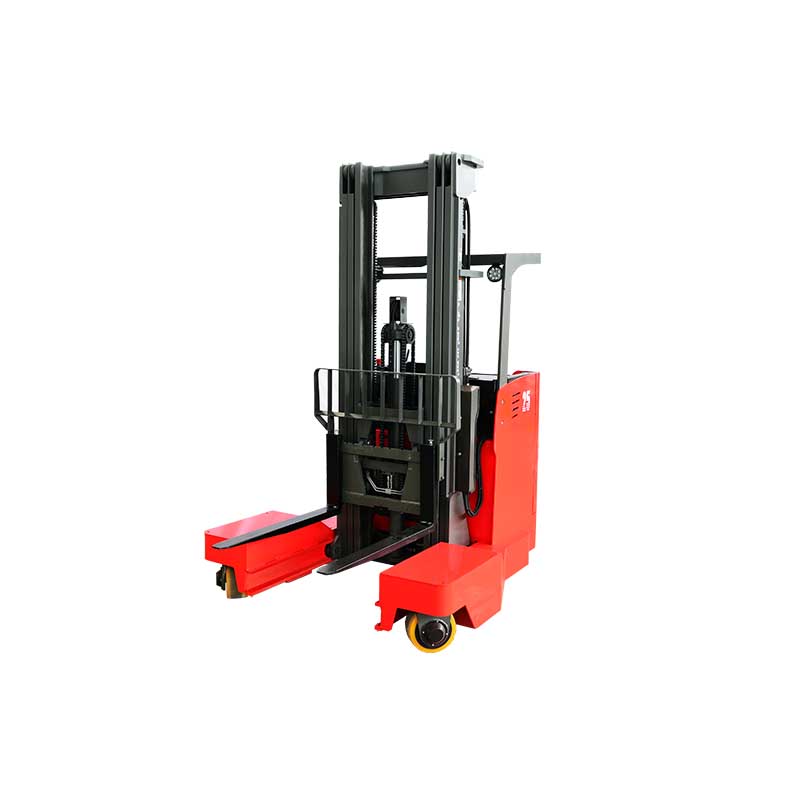

2.5T Multi-Directional Forklift (Stand-On) MQ25

MQ series forklift truck is a narrow-bodied station-driven omni-directional forklift truck suitable for narrow aisle stacking operation and long material handling, with a lifting height of 3.0m~8.0m. Compared with the common reach trucks, it is equipped with driving modes such as straight, sideways, diagonal, and in-situ turning at right angles. Especially, the side traveling function makes the vehicle more suitable for picking up long goods such as metal profiles, steel bars, plates and so on.

Quantity:
Availability:





Inquire Add to Basket

Standard
1.1	Model		MQ25-30	MQ25-45
1.2	Power Type		Battery	Battery
1.3	Driving style		Stand on	Stand on
1.4	Rated load	Q(kg)	2500	2500
1.5	Load Center	C(mm)	500	500
1.6	Front Overhand	x(mm)	175	175
1.7	Wheelbase	y(mm)	1700	1700
Weights
2.1	Service Weight(incl.battery)	kg	≈3700	≈3900
2.2	Battery Weight（±5%）	kg	665	665
Wheel
3.1	Wheel Types		PU	PU
3.2	Load wheel size	mm	φ267×114	φ267×114
3.3	Drive wheel size	mm	φ380×165	φ380×165
3.4	Auxiliary wheel size		φ204×76	φ204×76
3.5	Wheel tread, load side	b3(mm)	1304	1304
3.6	Wheel tread, drive side	b4(mm)	726	726

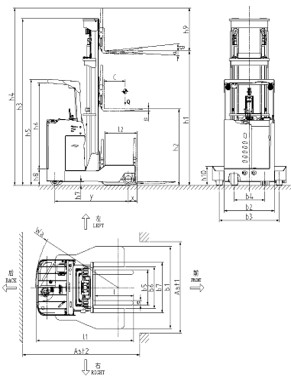

Size
4.1	Mast tilting	α/β(°)	3/5	2/6
4.2	Lift height	h1(mm)	Refer to the mast specification	Refer to the mast specification
4.3	Free lift height	h2(mm)	Refer to the mast specification	Refer to the mast specification
4.4	Mast closed height	h3(mm)	Refer to the mast specification	Refer to the mast specification
4.5	Mast extended height with load-backrest	h4(mm)	Refer to the mast specification	Refer to the mast specification
4.6	Overhead guard height	h5(mm)	2300	2300
4.7	Driving board height	h8(mm)	350	350
4.8	Ground clearance	h7(mm)	80	80
4.9	Leg height	h10(mm)	405	405
4.10	Overall length(incl.forks)	l1(mm)	2250/2086	2300/2086
4.11	Reach stroke	l2(mm)	783	733
4.12	Overall width	b1(mm)	1595	1595
4.13	Fork size	l/e/s(mm)	920×122×40	920×122×40
4.14	Body tail width	b2(mm)	1190	1190
4.15	Fork outside width	b5(mm)	244～772	244～772
4.16	Inner leg width	b6(mm)	892	892
4.17	Fork carriage width	b7(mm)	1088	1088
4.18	Turning in place radius(Unload)	Wa(mm)	2420	2420
Function
5.1	Driving speed(load/unload)	km/h	7.0/9.0	7.0/9.0
5.2	Lifting speed(load/unload)	mm/s	240/320	220/300
5.3	Lowering speed(load/unload)	mm/s	340/290	310/260
5.4	Straight driving max.gradeability，load/unload(S2-5min)	%(tanθ )	≤10	≤10
5.5	Side driving max.gradeability，load/unload(S2-5min)	%(tanθ )	≤5	≤5
5.6	Steering system		Electric power steering	Electric power steering
5.7	Drive wheel display		LED Screen	LED Screen
5.8	Braking method		Electromagnetic type	Electromagnetic type
Drive
6.1	Drive motor type		AC	AC
6.2	Drive motor power (S2-60min)	kw	5.5	5.5
6.3	Lifting motor type		AC	AC
6.4	Lift motor power (S3-15%)	kw	8.6	8.6
6.5	Lead acid battery, voltage/capacity	V/Ah	48/400	48/400
Other
7.1	Battery replacement method		Side pull	Side pull
Option
8.1	Video display		Customized camera	Customized camera
8.2	Fork positioner		Customized avaiable	Customized avaiable
8.3	Super wide fork carriage and four fork		Customized avaiable	Customized avaiable
