| Quantity: | |
|---|---|
| Characteristics | 1.1 | Model | MQB25 | MQB30 | |
| 1.2 | Power type | Battery | Battery | ||
| 1.3 | Driving style | Stand on | Stand on | ||
| 1.4 | Rated load | Q(kg) | 2500 | 3000 | |
| 1.5 | Load center | C(mm) | 600 | 600 | |

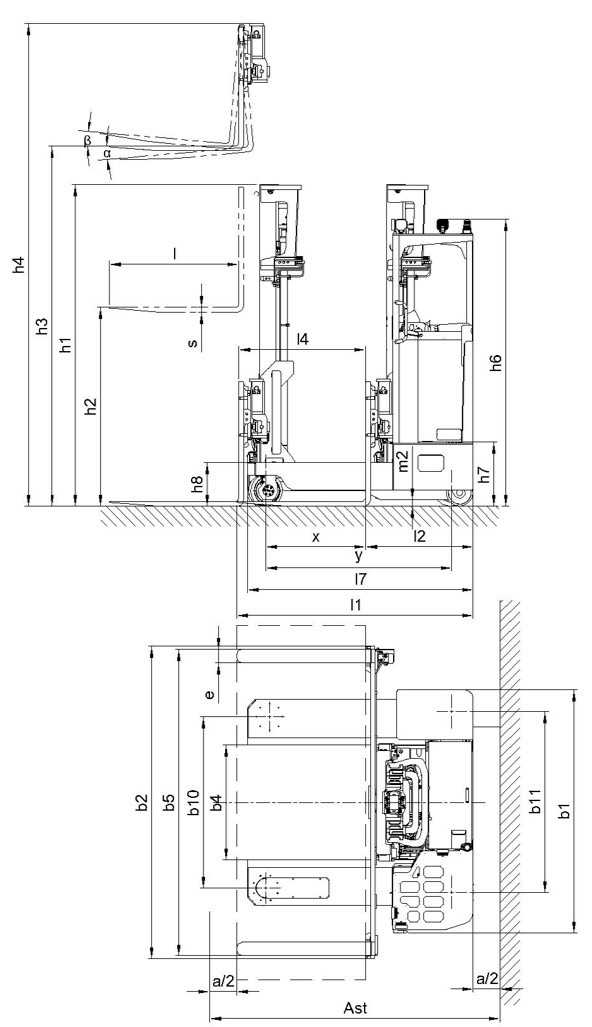

| 1.6 | Front overhang | x(mm) | 930 | 930 | |
| 1.7 | Wheelbase | y(mm) | 1730 | 1730 | |
| Weights | 2.1 | Service weight(incl.battery) | kg | 5730② | 5950② |
| 2.2 | Axle load with load,drive side/load side | kg | / | / | |
| 2.3 | Axle load without load,drive side/load side | kg | / | / | |
| Wheel | 3.1 | Tire type,drive side/load side | PU/Drive wheel rubber tire | PU/Drive wheel rubber tire | |
| 3.2 | Load wheel size | mm | Φ254×65/Φ285×100 | Φ254×65/Φ285×100 | |
| 3.3 | Drive wheel size | mm | φ381×203 | φ381×203 | |
| 3.4 | Additional wheels | mm | Φ254×65 | Φ254×65 | |
| 3.5 | Number of wheels,front/rear(x=drive wheel) | 2+2 / 1X+2 | 2+2 / 1X+2 | ||
| 3.6 | Wheel tread,drive side | b10(mm) | 1563 | 1563 | |
| 3.7 | Wheel tread,load side | b11(mm) | 1650 | 1650 | |
| Size | 4.1 | Tilt of fork,Forward/Backward | α/β(°) | 2/5 | 2/5 |
| 4.2 | Height of mast closed | h1(mm) | 3107 | 3107 | |
| 4.3 | Full free lifting height | h2(mm) | 1987 | 1987 | |
| 4.4 | Lifting height | h3(mm) | 6000 | 6000 | |
| 4.5 | Mast extended height | h4(mm) | 7150 | 7150 | |
| 4.7 | Overhead guard height(with light/without light) | h6(mm) | 2625/2490 | 2625/2490 | |
| 4.8 | Standing board height | h7(mm) | 585 | 585 | |
| 4.9 | Leg height | h8(mm) | 400 | 400 | |
| 4.10 | Overall length(without guide wheel) | L1(mm) | 2200 | 2200 | |
| 4.11 | Overall width | b1/b2(mm) | 2225/2860 | 2225/2860 | |
| 4.12 | Fork size | l/e/s(mm) | 1200/125/50 | 1200/125/50 | |
| 4.13 | Fork carriage width | b5(mm) | 2860 | 2860 | |
| 4.14 | Fork outside width | b3(mm) | 560～2800 | 560～2800 | |
| 4.15 | Inner leg width | b4(mm) | 1050 | 1050 | |
| 4.16 | Reach stroke | l4(mm) | 1180 | 1180 | |
| 4.17 | Min ground clearance | ml(mm) | 60 | 60 | |
| 4.18 | Length from tail to fork face | l2（mm） | 1000 | 1000 | |
| Function | 5.1 | Driving speed side driving | km/h | 7.0～8.0 | 7.0～8.0 |
| 5.2 | Driving speed straight driving | km/h | 5.0～6.0 | 5.0～6.0 | |
| 5.3 | Lifting speed(load/unload) | mm/s | 180/300 | 180/300 | |
| 5.4 | Lowering speed(load/unload) | mm/s | 300/220 | 300/220 | |
| 5.5 | Maximum straight driving climbing ability, load/unloaded (S2-5min) | %(tanθ ) | 8/8 | 8/8 | |
| 5.6 | Maximum side driving climbing ability, load/unloaded (S2-5min) | %(tanθ ) | 8/8 | 8/8 | |
| 5.7 | Braking method | Electromagnetic type | Electromagnetic type | ||
| Drive | 6.1 | Drive motor power (S2-60min) | kw | 5.5AC | 5.5AC |
| 6.2 | Lift motor power, (S3-15%) | kw | 12.8AC | 12.8AC | |
| 6.3 | Lead acid battery, voltage/capacity | V/Ah | 48/400 | 48/500 | |
| 6.4 | Battery Weight | kg | 826 | 826 | |
| 6.5 | Steering system | EPS | EPS | ||
| Other | 7.1 | Battery replacement method | Hoisting | Hoisting | |
①Standard with fork positioner,optional fork sensing function
②Standard model data, will vary according to different configurations
