| Characteristics | 1.1 | Model | MQC25 | MQC30 | |
| 1.2 | Power type | Battery | Battery | ||
| 1.3 | Driving style | Seated | Seated | ||
| 1.4 | Rated load | Q(kg) | 2500 | 3000 | |

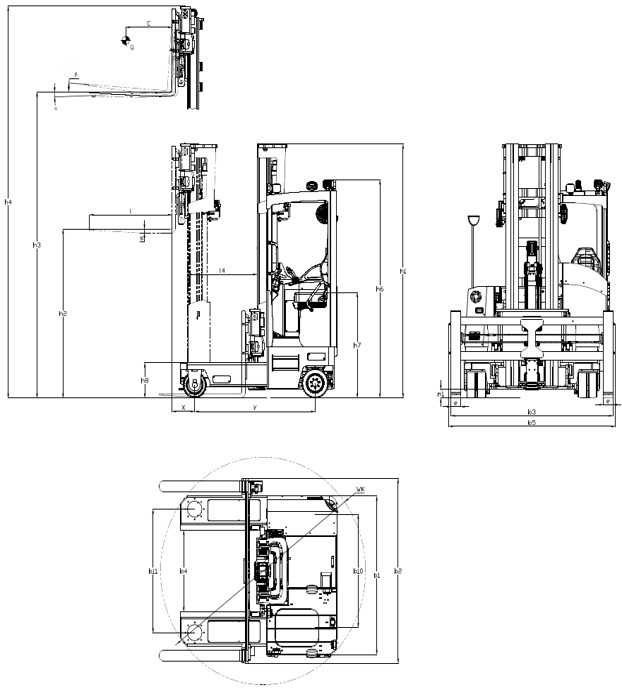

| 1.5 | Load center | C(mm) | 600 | 600 | |
| 1.6 | Front overhang | x(mm) | 270 | 270 | |
| 1.7 | Wheelbase | y(mm) | 1560 | 1560 | |
| Weights | 2.1 | Service weight(incl.battery) | kg | 5385② | 5585② |
| 2.2 | Axle load with load,drive side/load side | kg | 3685/4200 | 4020/4565 | |
| 2.3 | Axle load without load,drive side/load side | kg | 3756/1629 | 3890/1695 | |
| Wheel | 3.1 | Tire type,drive side/load side | Rubber Solid Wheel | Rubber Solid Wheel/PU Wheel | |
| 3.2 | Load wheel size | in/mm | 12×4.5/φ305×114 | φ305×114 | |
| 3.3 | Drive wheel size | in/mm | 13.5×5.5/φ343×140 | 13.5×5.5/φ343×140 | |
| 3.4 | Additional wheels | mm | / | / | |
| 3.5 | Number of wheels,front/rear(x=drive wheel) | 4 / 2X | 4 / 2X | ||
| 3.6 | Wheel tread,drive side | b10(mm) | 1320 | 1320 | |
| 3.7 | Wheel tread,load side | b11(mm) | 1442 | 1442 | |
| Size | 4.1 | Tilt of fork,Forward/Backward | α/β(°) | 2/4 | 2/4 |
| 4.2 | Height of mast closed | h1(mm) | 2970 | 3140 | |
| 4.3 | Full free lifting height | h2(mm) | 1915 | 2080 | |
| 4.4 | Lifting height | h3(mm) | 6000 | 6000 | |
| 4.5 | Mast extended height | h4(mm) | 7040 | 7080 | |
| 4.7 | Cabin height(with light/without light) | h6(mm) | 2550/2430 | 2550/2430 | |
| 4.8 | Seat height | h7(mm) | 1235 | 1235 | |
| 4.9 | Leg height | h8(mm) | 410 | 410 | |
| 4.10 | Overall length(without guide wheel) | l1/l2(mm) | 2300/2030 | 2300/2030 | |
| 4.11 | Overall width | b1/b2(mm) | 1850/2160 | 1850/2160 | |
| 4.12 | No-load turn around diameter | WK(mm) | 2660 | 2660 | |
| 4.13 | Fork size | l/e/s(mm) | 1070/125/45 | 1070/125/45 | |
| 4.14 | Fork carriage width | b5(mm) | 2160 | 2160 | |
| 4.15 | Fork outside width | b3(mm) | 550～2100 | 550～2100 | |
| 4.16 | Inner leg width | b4(mm) | 950 | 950 | |
| 4.17 | Reach stroke | l4(mm) | 900 | 900 | |
| 4.18 | Min ground clearance | ml(mm) | 100 | 100 | |
| Function | 5.1 | Driving speed | km/h | 8.0～9.0 | 8.0～9.0 |
| 5.2 | Lifting speed,load/unloaded | mm/s | 200/300 | 200/300 | |
| 6.1 | Lowering speed,load/unloaded | mm/s | 300/220 | 300/220 | |
| 5.3 | Straight Max Gradeability, Load/Unloaded(S2-5min) | %(tanθ ) | 8/10 | 8/10 | |
| 7.1 | Side Max Gradeability, Load/Unloaded(S2-5min) | %(tanθ ) | 8/10 | 8/10 | |
| 5.4 | Braking method | Electromagnetic | Electromagnetic | ||
| Drive | 6.1 | Drive motor power(S2-60min) | kw | 6.5AC | 6.5AC |
| 6.2 | Lifting motor power, (S3-15%) | kw | 12.5AC | 12.5AC | |
| 6.3 | Lead acid battery, voltage/capacity | V/Ah | 48/500 | 48/500 | |
| 6.4 | Battery weight | kg | 810 | 810 | |
| 6.5 | Steering system | EPS | EPS | ||
| Other | 7.1 | Battery replacement | Hoisting | Hoisting | |
| 1.Standard with fork positioner,optional fork sensing function | |||||
| 2.Standard model data, will vary according to different configurations | |||||
