| Quantity: | |
|---|---|
| Characteristics | 1.1 | Model | MQD30 | |
| 1.2 | Power Type | Battery | ||
| 1.3 | Driving style | Seated | ||
| 1.4 | Rated load | Q(kg) | 3000 | |
| 1.5 | Load Center | C(mm) | 600 | |
| 1.6 | Front Overhand | x(mm) | 312 | |
| 1.7 | Wheelbase | y(mm) | 1895 | |
| Weights | 2.1 | Service weight(incl. battery) | kg | 5580② |
| 2.2 | Axle capacity with full load,drive side/load size | kg | / | |
| 2.3 | Axle capacity with no load,drive side/load size | kg | / | |
| Wheel | 3.1 | Wheel type,drive side/load side | Rubber solid wheel | |
| 3.2 | Wheel size,load side | mm | φ405×220 | |
| 3.3 | Wheel size,drive side | mm | φ457×229 | |
| 3.4 | Auxiliary wheel | mm | / | |
| 3.5 | Number of wheels,front/rear(x=drive wheel) | 2 / 1X | ||
| 3.6 | Wheel tread,drive side | b10(mm) | 0 | |
| 3.7 | Wheel tread,load side | b11(mm) | 1776 | |

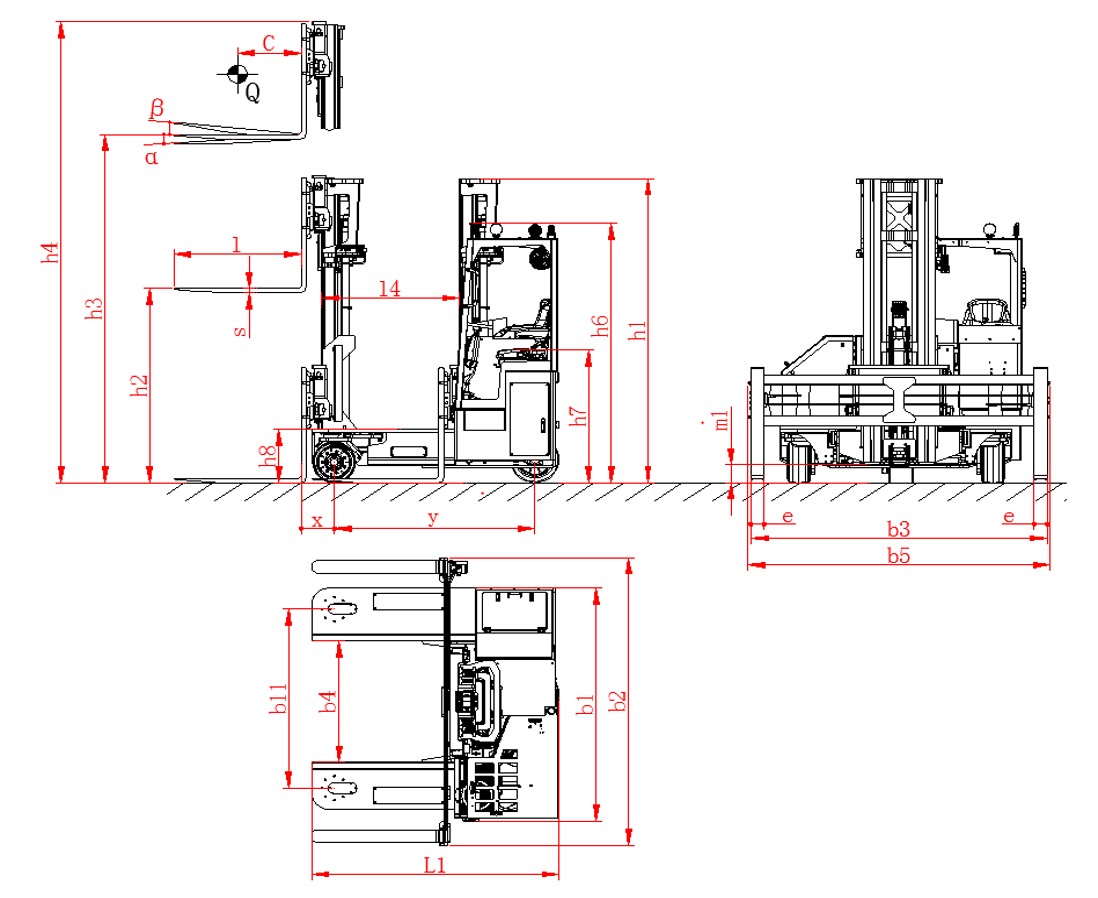

| Size | 4.1 | Fork tilt, forward/backward | α/β(°) | 2/5 |
| 4.2 | Mast closed height | h1(mm) | 3020 | |
| 4.3 | Free lift height | h2(mm) | 1884 | |
| 4.4 | Lift height | h3(mm) | 5500 | |
| 4.5 | Mast extended height with backrest | h4(mm) | 6650 | |
| 4.7 | Cab height(with lamp/without lamp) | h6(mm) | 2571/2440 | |
| 4.8 | Seat height | h7(mm) | 1310 | |
| 4.9 | Leg height | h8(mm) | 530 | |
| 4.10 | Overall length(without guide wheel) | L1(mm) | 2330 | |
| 4.11 | Overall width | b1/b2(mm) | 2300/2860 | |
| 4.12 | Fork size | l/e/s(mm) | 1200/125/50 | |
| 4.13 | Fork carriage width | b5(mm) | 2860 | |
| 4.14 | Fork outside spread | b3(mm) | 560～2800 | |
| 4.15 | Inner leg width | b4(mm) | 1200 | |
| 4.16 | Reach stroke | l4(mm) | 1300 | |
| 4.17 | Mast ground clearance (without camera) | ml(mm) | 150 | |
| Function | 5.1 | Side driving speed,load/unload | km/h | 7.0～8.0 |
| 5.2 | Straight driving speed,load/unload | km/h | 5.0～6.0 | |
| 5.3 | Lifting speed,load/unload | mm/s | 180/300 | |
| 5.4 | Lowering speed, load/unload | mm/s | 300/220 | |
| 5.5 | Straight driving Max. gradeability(load/unload)(S2-5min) | %(tanθ ) | 8/10 | |
| 5.6 | Side driving Max. gradeability (load/unload)(S2-5min) | %(tanθ ) | 8/10 | |
| 5.7 | Brake type(front/rear) | Mechanical/Electromagnetic | ||
| Drive | 6.1 | Driving motor (S2-60min) | kw | 9.1AC |
| 6.2 | Lifting motor (S3-15%) | kw | 12.8AC | |
| 6.3 | Battery,voltage/capacity | V/Ah | 48/560 | |
| 6.4 | Battery weight | kg | 900 | |
| 6.5 | Steering system | Hydraulic steering | ||
| Other | 7.1 | Battery replacement | Hoist/Side pull |
①Standard with fork positioner, optional distribution fork sensing function.
②The standard vehicle data will change according to different configurations.
