| Quantity: | |
|---|---|
| Standard | ||||

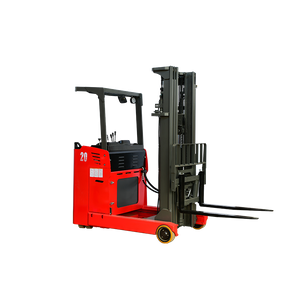

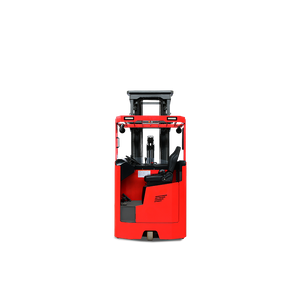

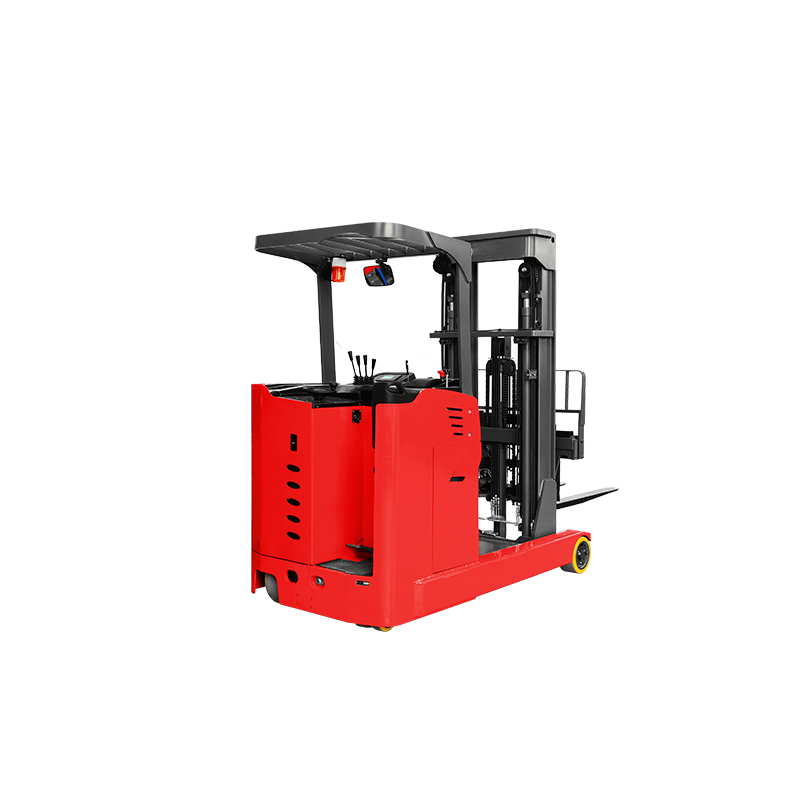

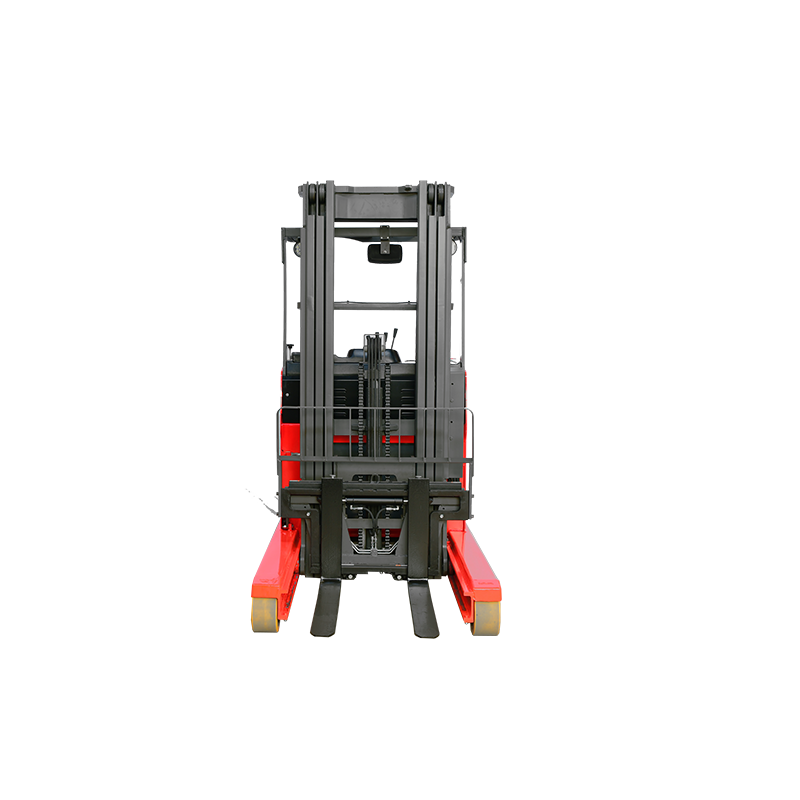

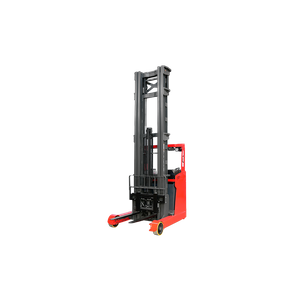

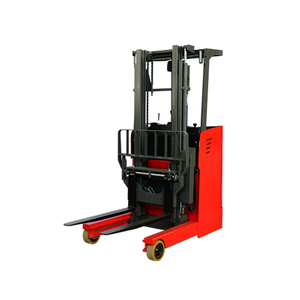

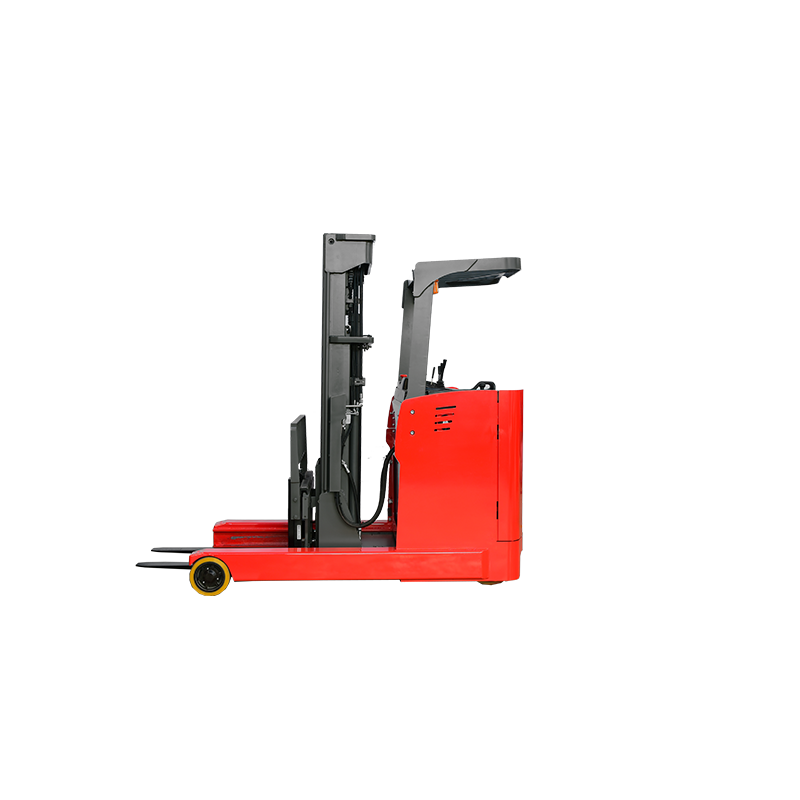

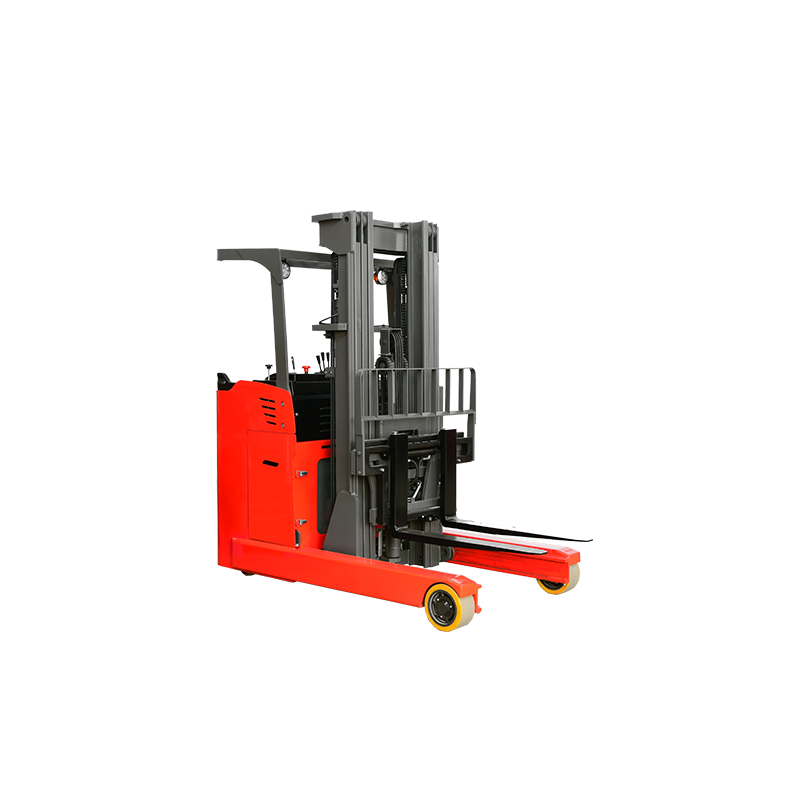

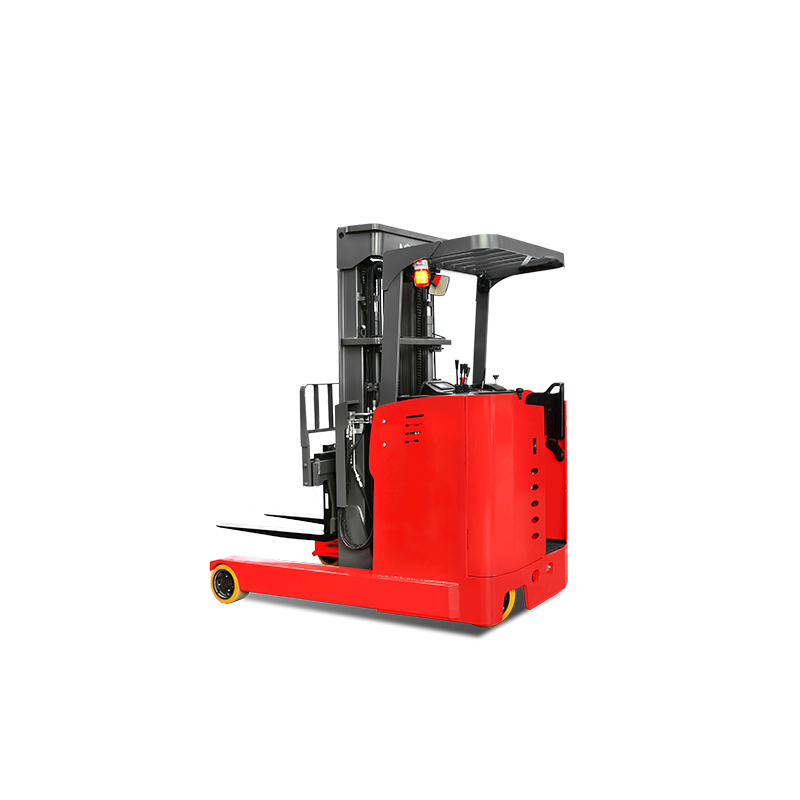

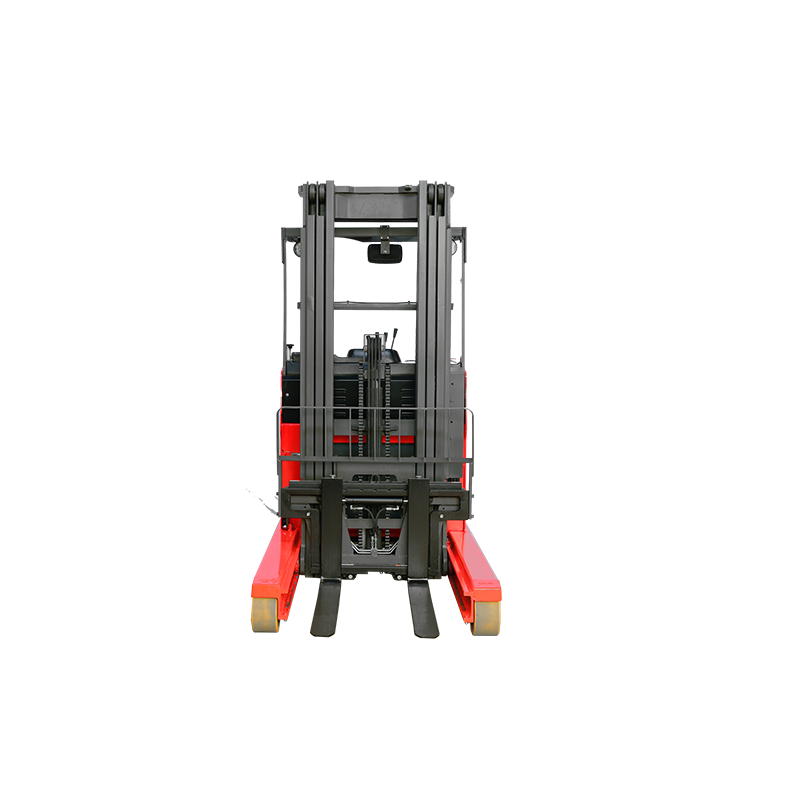

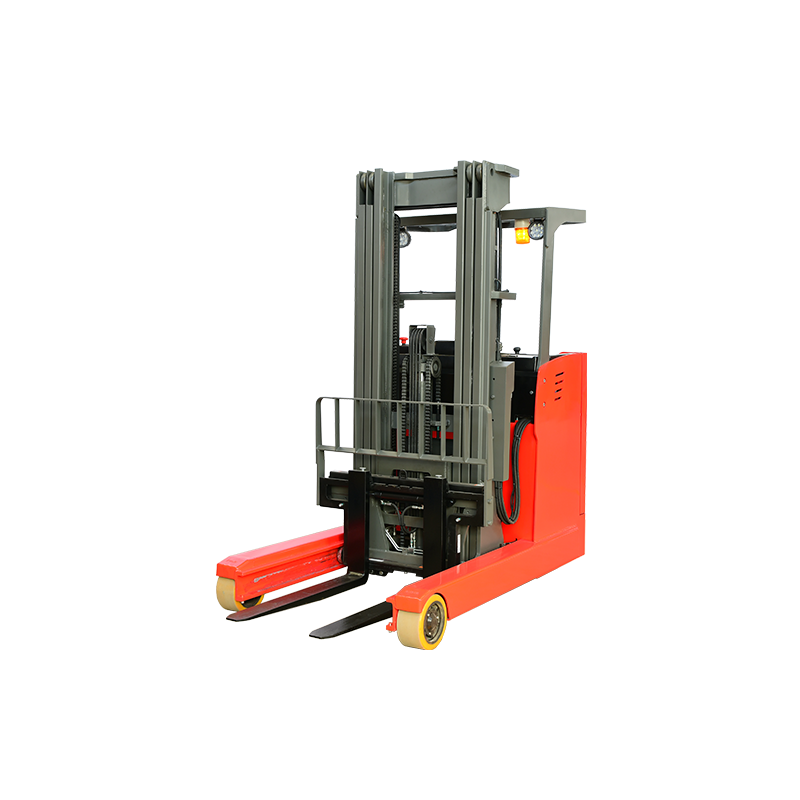

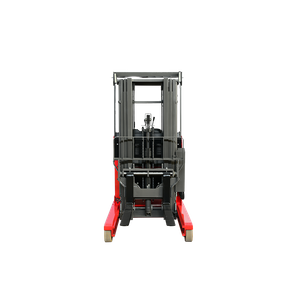

| 1.1 | Model | MF30 (Duplex mast) | MF30 (Triplex full free mast) | |
| 1.2 | Power type | Battery | Battery | |
| 1.3 | Operation type | Stand on | Stand on | |

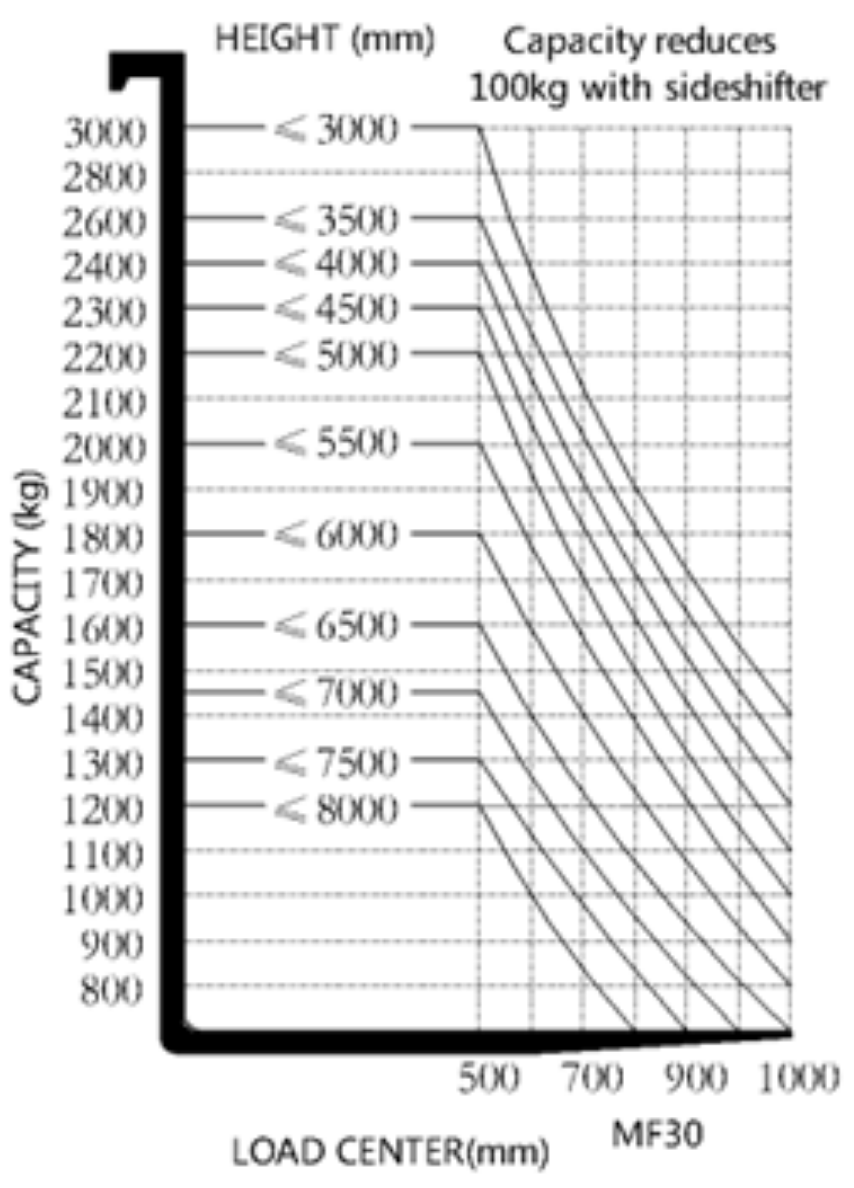

| 1.4 | Rated capacity | Q(kg) | 3000 | 3000 |
| 1.5 | Load center | C(mm) | 500 | 500 |
| 1.6 | Front overhang | x(mm) | 180 | 180 |
| 1.7 | Wheelbase | y(mm) | 1920 | 1920 |
| Weight | ||||
| 2.1 | Service weight(incl. battery) | kg | 3400 | 3680 |
| Wheel | ||||
| 3.1 | Wheel type | PU | PU | |
| 3.2 | Front wheel | mm | Φ267×135 | Φ267×135 |
| 3.3 | Drive wheel | mm | Φ380×165 | Φ380×165 |
| 3.4 | Auxiliary wheel | mm | Φ204×76 | Φ204×76 |
| 3.5 | Number of wheels-front/rear (x=drive wheel) | 2/1 x+2 | 2/1 x+2 | |
| 3.6 | Wheel tread,drive side | b10(mm) | 725 | 725 |
| 3.7 | Wheel tread,load side | b11(mm) | 1135 | 1135 |

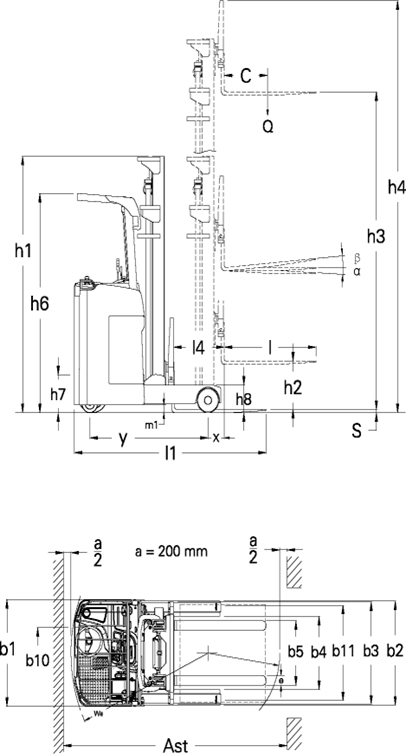

| Size | ||||
| 4.1 | Fork tilt | α/β(°) | 3/5 | 2/6 |
| 4.2 | Mast closed height | h1(mm) | 2082 | 2292 |
| 4.3 | Free Lift height | h2(mm) | 80 | 1550 |
| 4.4 | Lift height | h3(mm) | 3000 | 4500 |
| 4.5 | Mast extended height with load-backrest | h4(mm) | 4050 | 5550 |
| 4.6 | Overhead guard height | h6(mm) | 2300 | 2300 |
| 4.7 | Pedal height | h7(mm) | 350 | 350 |
| 4.8 | Overall length | l1(mm) | 2487 | 2534 |
| 4.9 | Overall width | b1/b2(mm) | 1190/1270 | 1190/1270 |
| 4.10 | Fork size | l/e/s(mm) | 1070/125/45 | 1070/125/45 |
| 4.11 | Fork carriage width | b3(mm) | 1148 | 1148 |
| 4.12 | Fork outside width | b5(mm) | 250-750 | 250-750 |
| 4.13 | Inner leg width | b4(mm) | 892 | 892 |
| 4.14 | Reach stroke | l4(mm) | 925 | 875 |
| 4.15 | Mast ground clearance | m1(mm) | 82 | 82 |
| 4.16 | Aisle width for pallet 1000*1200mm(C=500mm) | Ast(mm) | 3045 | 3066 |
| 4.17 | Aisle width for pallet 800*1200mm(C=600mm) | Ast(mm) | 3000 | 3037 |
| 4.18 | Turning radius | Wa(mm) | 2192 | 2192 |
| Function | ||||
| 5.1 | Driving speed(load/unload) | km/h | 8/10 | 8/10 |
| 5.2 | Lifting speed(load/unload) | mm/s | 220/320 | 200/300 |
| 5.3 | Lowering speed(load/unload) | mm/s | 340/290 | 310/260 |
| 5.4 | Max.gradeability(load/unload) | %(tanθ ) | ≤10 | ≤10 |
| 5.5 | Brake type | Mechanical | Mechanical | |
| Drive | ||||
| 6.1 | Driving Motor(S2-60min) | kw | 5.5 | 5.5 |
| 6.2 | Lifting Motor(S3-15%) | kw | 8.6 | 8.6 |
| 6.3 | Battery voltage/capacity | V/Ah | 48/400 | 48/400 |
| 6.4 | Battery weight | kg | 650 | 650 |
| 6.5 | Steering system | EPS | EPS | |
| Other | ||||
| 7.1 | Battery replacement type | Side pull | Side pull | |
