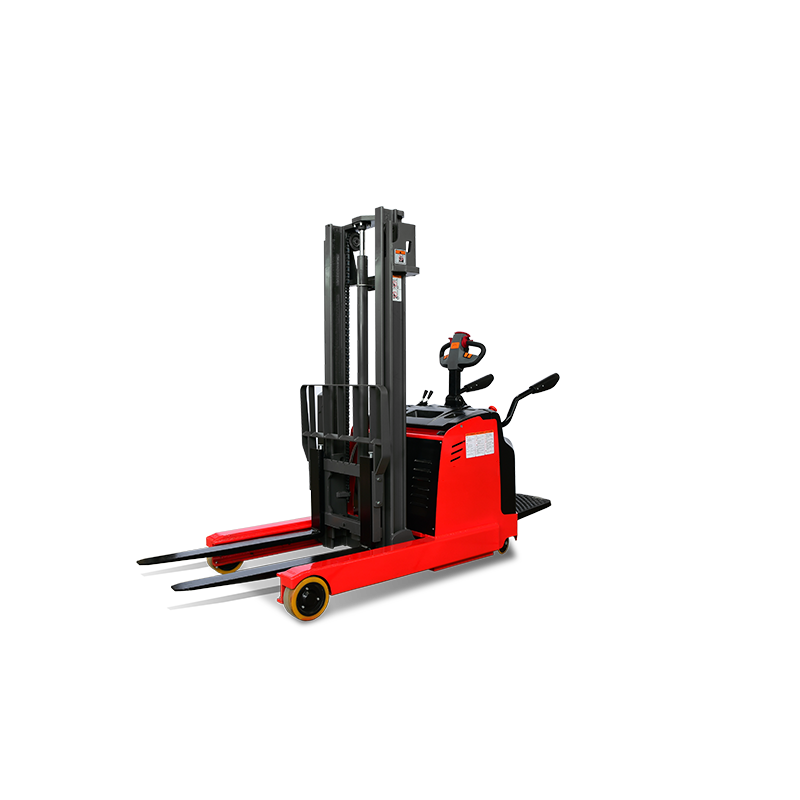

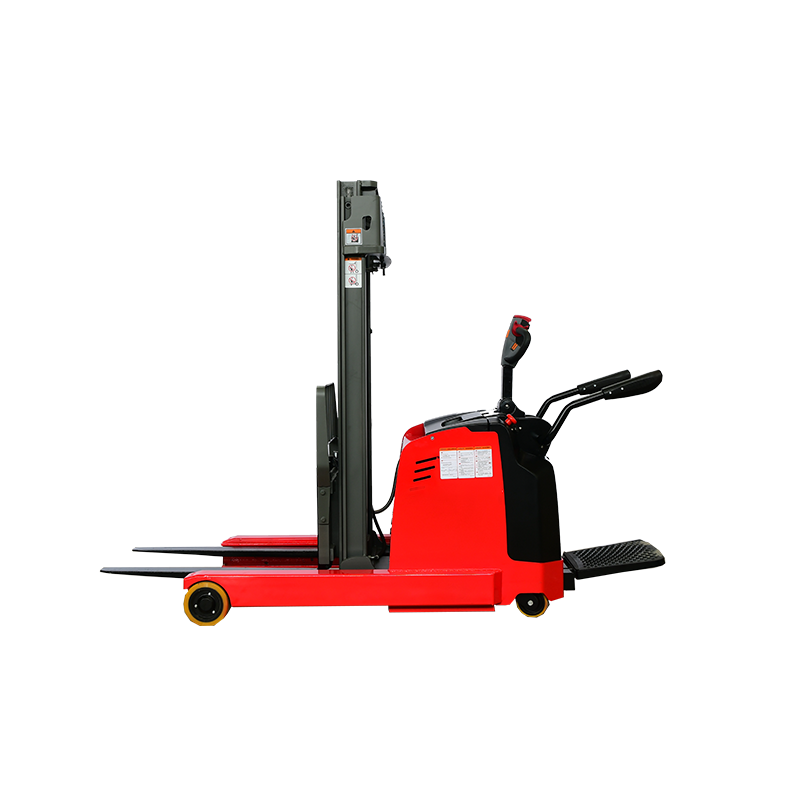

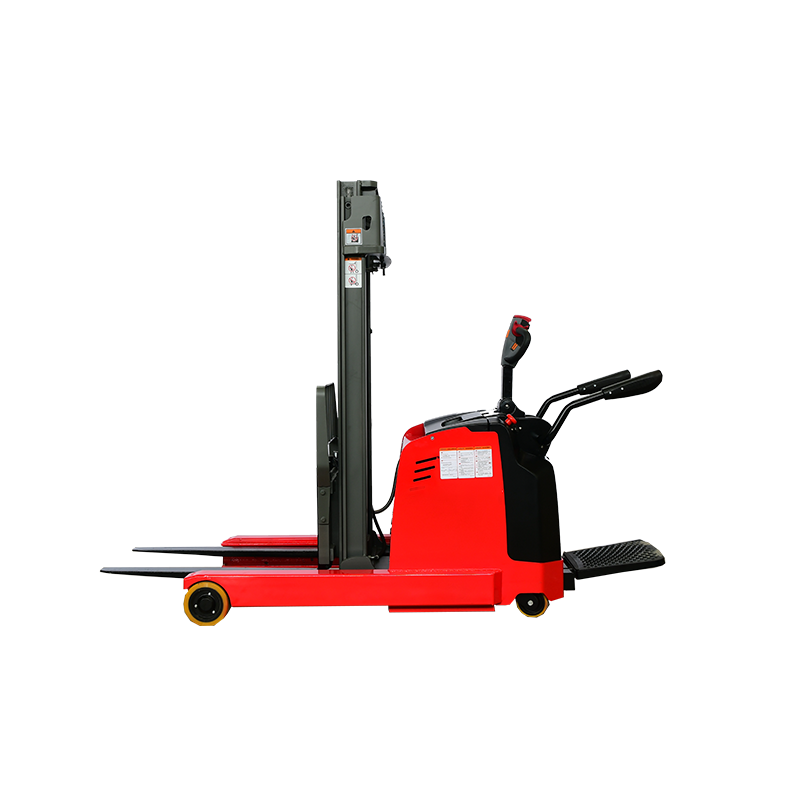

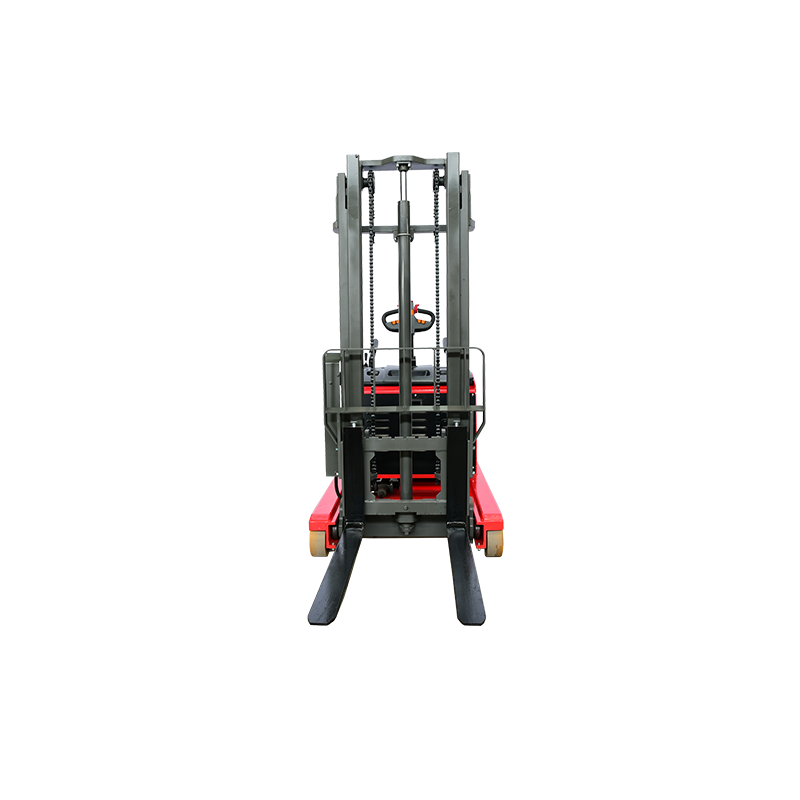

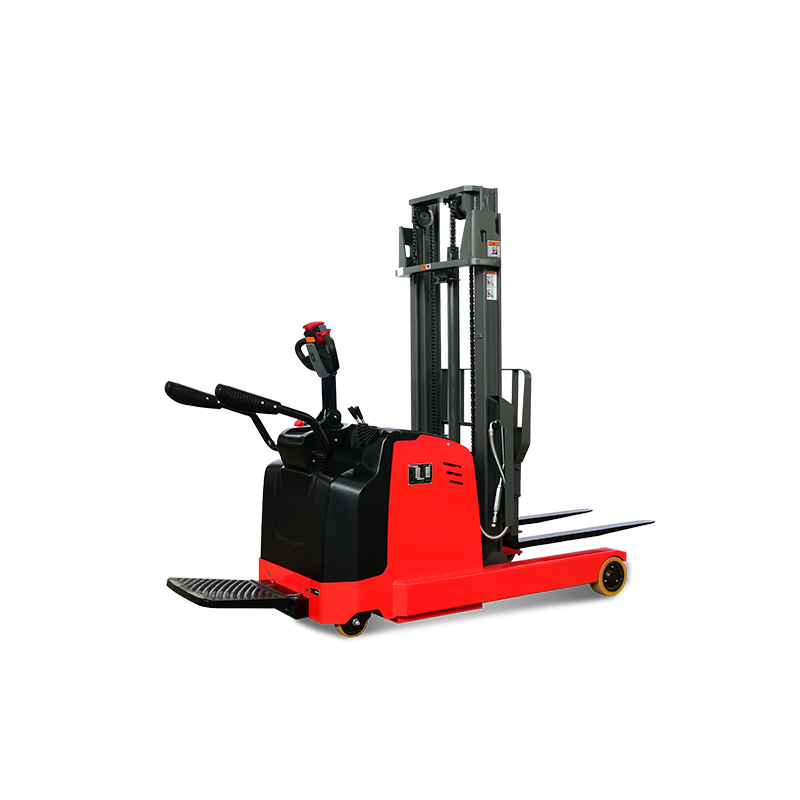

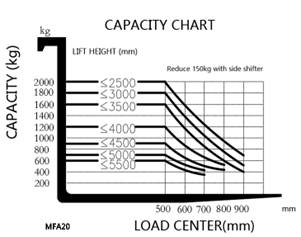

| Standard | |||||
| 1.1 | Model | MFA20 (Single cylinder, single mast) (Single cylinder, duplex mast) | MFA20 (Double cylinders, duplex mast) | MFA20 (Triplex mast) | |
| 1.2 | Power type | Battery | Battery | Battery | |
| 1.3 | Operation type | Stand-on | Stand-on | Stand-on | |
| 1.4 | Rated capacity | Q(kg) | 2000 | 2000 | 2000 |
| 1.5 | Load center | C(mm) | 500 | 500 | 500 |
| 1.6 | Front overhang | x(mm) | 120 | 130 | 130 |
| 1.7 | Wheelbase | y(mm) | 1630 | 1630 | 1630 |
| Weight | |||||
| 2.1 | Service weight (incl.battery) | kg | 2100 | 2200 | 2250 |
| Wheel | |||||
| 3.1 | Wheel type | PU | PU | PU | |
| 3.2 | Load wheel | mm | φ210×85 | φ210×85 | φ210×85 |
| 3.3 | Drive wheel | mm | φ230×75 | φ230×75 | φ230×75 |
| 3.4 | Auxiliary wheel | mm | φ150×50 | φ150×50 | φ150×50 |
| 3.5 | Number of wheels,front/rear(X=drive wheel) | 2/1x+2 | 2/1x+2 | 2/1x+2 | |
| 3.6 | Wheel tread, drive side | b10(mm) | 678 | 678 | 678 |
| 3.7 | Wheel tread, load side | b11(mm) | 1015 | 1015 | 1015 |

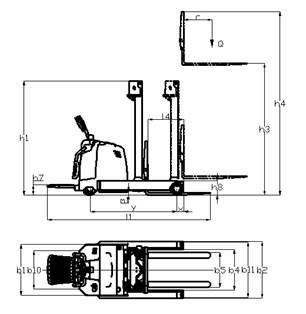

| Size | |||||
| 4.1 | Mast closed height | h1(mm) | Refer to mast specification | Refer to mast specification | Refer to mast specification |
| 4.2 | Lift height | h3(mm) | Refer to mast specification | Refer to mast specification | Refer to mast specification |
| 4.3 | Mast extended height with load-backrest | h4(mm) | Refer to mast specification | Refer to mast specification | Refer to mast specification |
| 4.4 | Pedal height | h7(mm) | 170 | 170 | 170 |
| 4.5 | Support leg height | h8(mm) | 245 | 245 | 245 |
| 4.6 | Overall length(pedal off/on) | L1(mm) | ≤2530 | ≤2530 | ≤2600 |
| 4.7 | Overall width | b1/b2(mm) | 900/1105 | 900/1105 | 900/1105 |
| 4.8 | Fork size | l/e/s(mm) | 1070/122/40 | 1070/122/40 | 1070/122/40 |
| 4.9 | Installation class | 2A | 2A | 2A | |
| 4.10 | Fork outside width | b5(mm) | 264-732 | 264-732 | 264-732 |
| 4.11 | Reach stroke | l4(mm) | 685 | 685 | 685 |
| 4.12 | Mast ground clearance | m1(mm) | 50 | 50 | 50 |
| 4.13 | Aisle width for pallet 1000*1200mm | Ast(mm) | 2790 | 2790 | 2815 |
| 4.14 | Aisle width for pallet 800*1200mm | Ast(mm) | 2790 | 2790 | 2840 |
| 4.15 | Turning radius | Wa(mm) | 1950 | 1950 | 1950 |
| Function | |||||
| 5.1 | Driving speed(load/unload) | km/h | 5.5/6 | 5.5/6 | 5.5/6 |
| 5.2 | Lifting speed(load/unload) | mm/s | 95/150 | 95/150 | 95/150 |
| 5.3 | Lowering speed(load/unload) | mm/s | 100/95 | 100/95 | 100/95 |
| 5.4 | Max.gradeability(load/unload)(S2-5min) | %(tanθ ) | 6/8 | 6/8 | 6/8 |
| 5.5 | Brake type | Electromagnetic | Electromagnetic | Electromagnetic | |
| Drive | |||||
| 6.1 | Driving motor(S2-60min) | kw | 1.5 | 1.5 | 1.5 |
| 6.2 | Lifting motor(S3-10%) | kw | 3 | 3 | 3 |
| 6.3 | Battery voltage/capacity | V/Ah | 24/210 (270AH optional) | 24/210 (270AH optional) | 24/210 (270AH optional) |
| 6.4 | Battery weight | kg | 175 | 175 | 175 |
| 6.5 | Steering system | EPS | EPS | EPS | |
