| Quantity: | |
|---|---|
| Standard | ||||

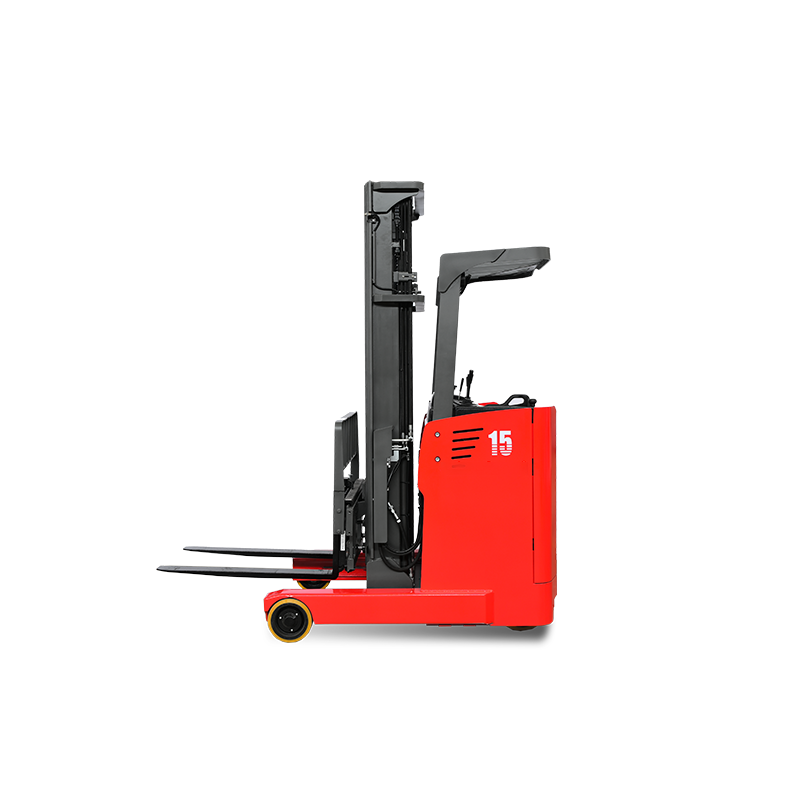

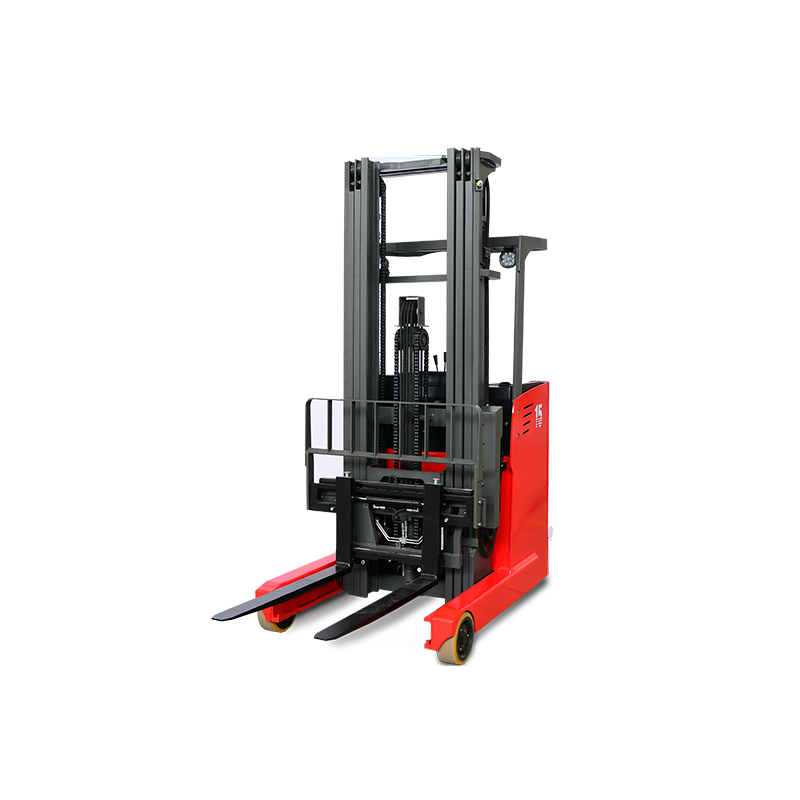

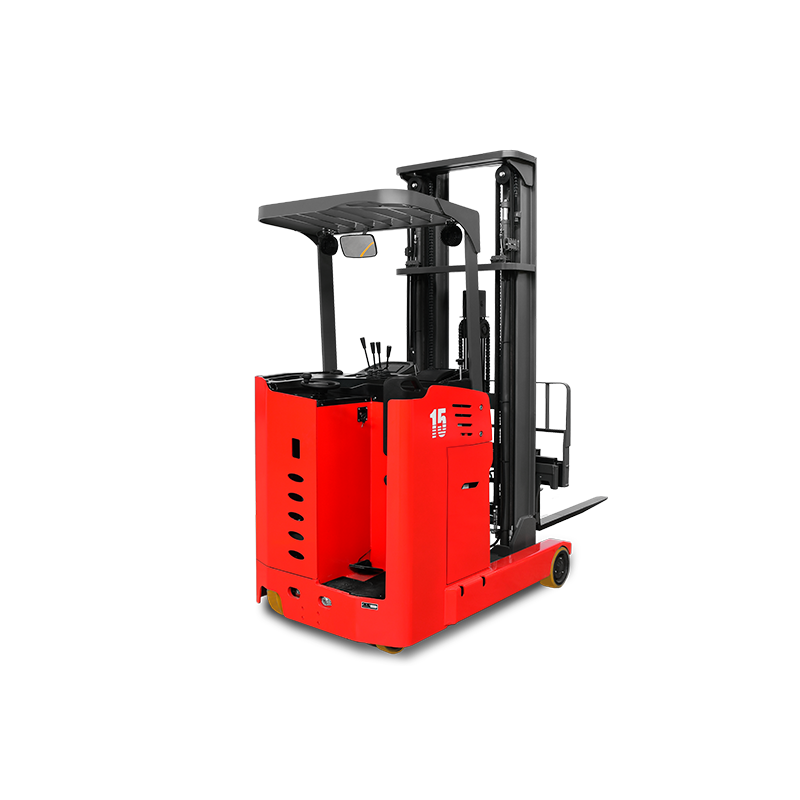

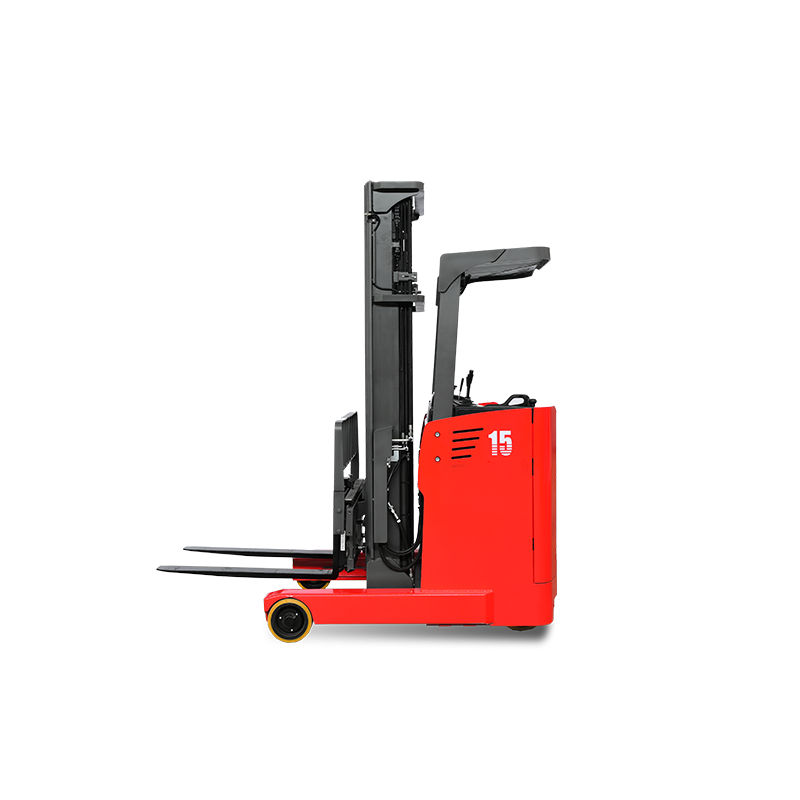

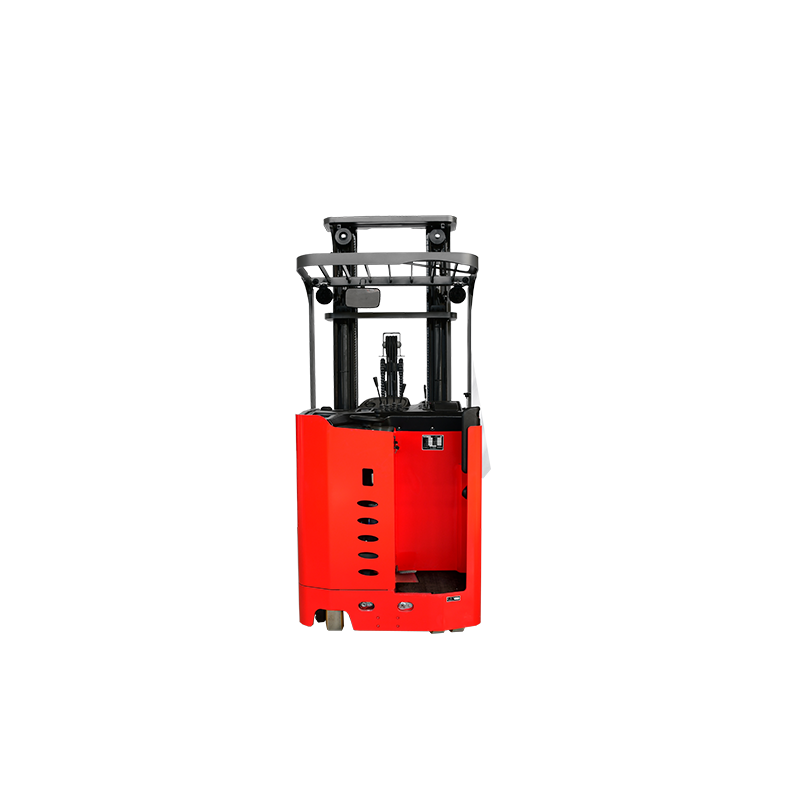

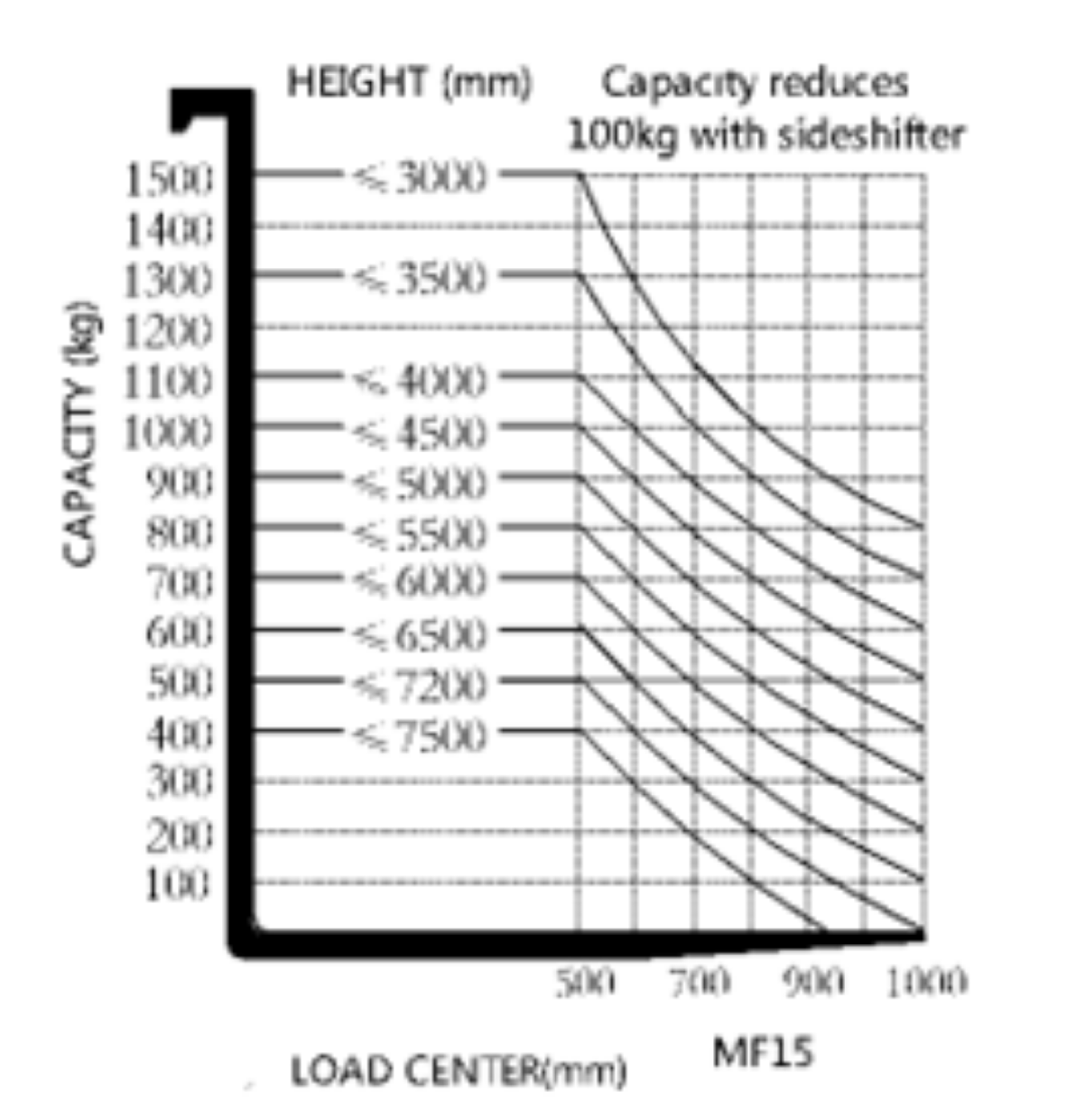

| 1.1 | Model | MF15 (Duplex mast) | MF15 (Triplex full free mast) | |
| 1.2 | Power type | Battery | Battery | |
| 1.3 | Operation type | Stand on | Stand on | |
| 1.4 | Rated capacity | Q(kg) | 1500 | 1500 |
| 1.5 | Load center | C(mm) | 500 | 500 |
| 1.6 | Front overhang | x(mm) | 180 | 180 |
| 1.7 | Wheelbase | y(mm) | 1345 | 1345 |
| Weight | ||||
| 2.1 | Service weight(incl. battery) | kg | 2450 | 2850 |
| 2.2 | Axle capacity with no load,drive side/load size | kg | 1625/825 | 1900/950 |
| 2.3 | Axle capacity with full load(fork forward)drive side/load size | kg | 660/3290 | 600/3750 |
| 2.4 | Axle capacity with full load(fork backward)drive side/load size | kg | 1510/2440 | 1600/2750 |
| Wheel | ||||
| 3.1 | Wheel type | PU | PU | |
| 3.2 | Front wheel | mm | Φ254×104 | Φ254×104 |
| 3.3 | Drive wheel | mm | Φ343×108 | Φ343×108 |
| 3.4 | Auxiliary wheel | mm | Φ180×76 | Φ180×76 |
| 3.5 | Number of wheels-front/rear (x=drive wheel) | 2/1 x+2 | 2/1 x+2 | |
| 3.6 | Wheel tread,drive side | b10(mm) | 680 | 680 |
| 3.7 | Wheel tread,load side | b11(mm) | 964 | 1064 |
| Size | ||||
| 4.1 | Fork tilt | α/β(°) | 3/5 | 3/5 |
| 4.2 | Mast closed height | h1(mm) | 2082 | 2142 |
| 4.3 | Free Lift height | h2(mm) | 400 | 1542 |
| 4.4 | Lift height | h3(mm) | 3000 | 4500 |
| 4.5 | Mast extended height with load-backrest | h4(mm) | 3960 | 5460 |
| 4.6 | Overhead guard height | h6(mm) | 2250 | 2250 |
| 4.7 | Pedal height | h7(mm) | 300 | 300 |
| 4.8 | Overall length | l1(mm) | 2258 | 2283 |
| 4.9 | Overall width | b1/b2(mm) | 1090 | 1090/1170 |
| 4.10 | Fork size | l/e/s(mm) | 1070/100/35 | 1070/100/35 |
| 4.11 | Fork carriage width | b3(mm) | 1088 | 1088 |
| 4.12 | Fork outside width | b5(mm) | 222-650 | 222-750 |
| 4.13 | Inner leg width | b4(mm) | 750 | 856 |
| 4.14 | Reach stroke | l4(mm) | 550 | 525 |
| 4.15 | Mast ground clearance | m1(mm) | 82 | 82 |
| 4.16 | Aisle width for pallet 1000*1200mm(C=500mm) | Ast(mm) | 2663 | 2681 |
| 4.17 | Aisle width for pallet 800*1200mm(C=600mm) | Ast(mm) | 2714 | 2737 |
| 4.18 | Turning radius | Wa(mm) | 1594 | 1594 |
| Function | ||||
| 5.1 | Driving speed(load/unload) | km/h | 9/10 | 9/10 |
| 5.2 | Lifting speed(load/unload) | mm/s | 240/400 | 200/350 |
| 5.3 | Lowering speed(load/unload) | mm/s | 300/270 | 320/280 |
| 5.4 | Max.gradeability(load/unload) | %(tanθ ) | ≤10 | ≤10 |
| 5.5 | Brake type | Mechanical | Mechanical | |
| Drive | ||||
| 6.1 | Driving Motor(S2-60min) | kw | 4.5 | 4.5 |
| 6.2 | Lifting Motor(S3-15%) | kw | 7.5 | 7.5 |
| 6.3 | Battery voltage/capacity | V/Ah | 48/300 | 48/300 |
| 6.4 | Battery weight | kg | 500 | 500 |
| 6.5 | Steering system | EPS | EPS | |
| Other | ||||
| 7.1 | Battery replacement type | Side pull | Side pull | |
