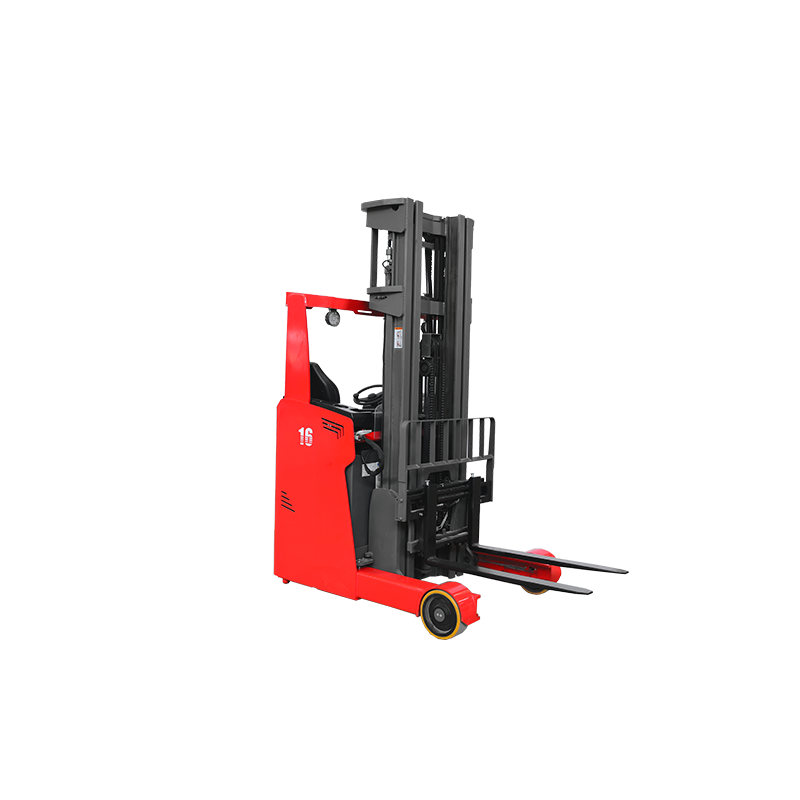

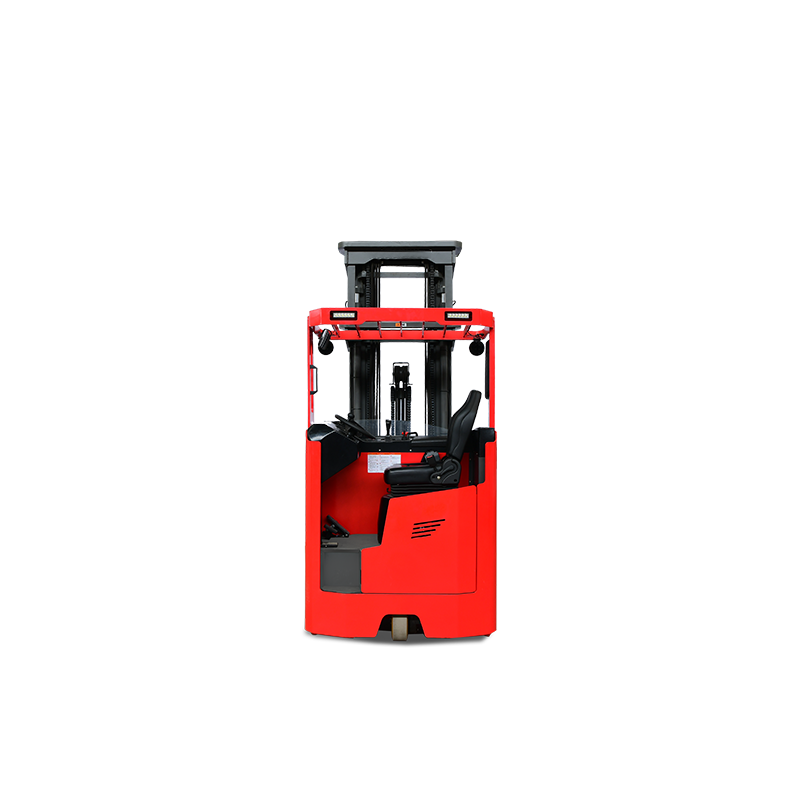

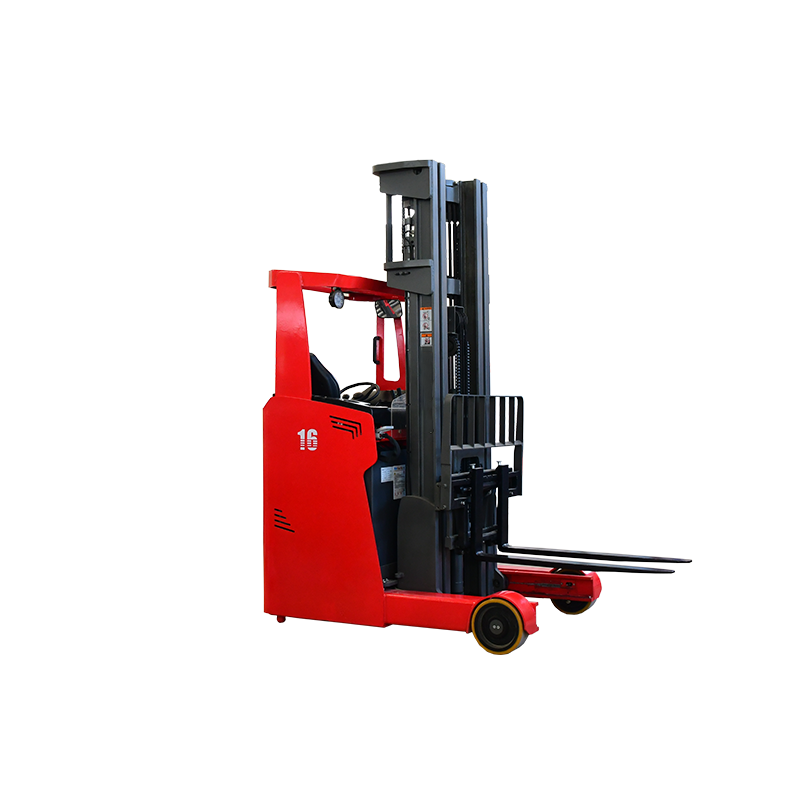

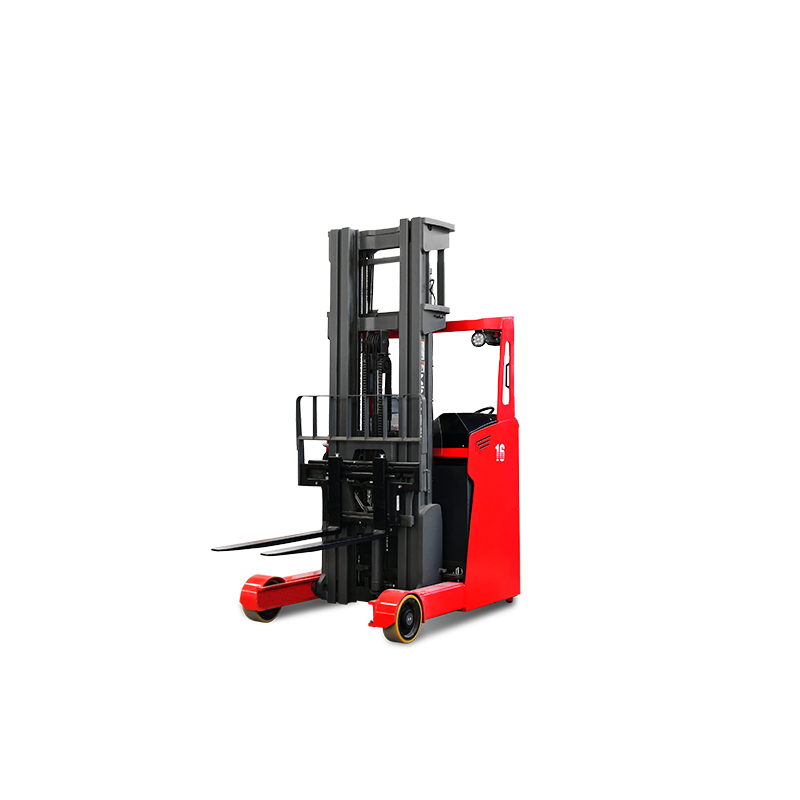

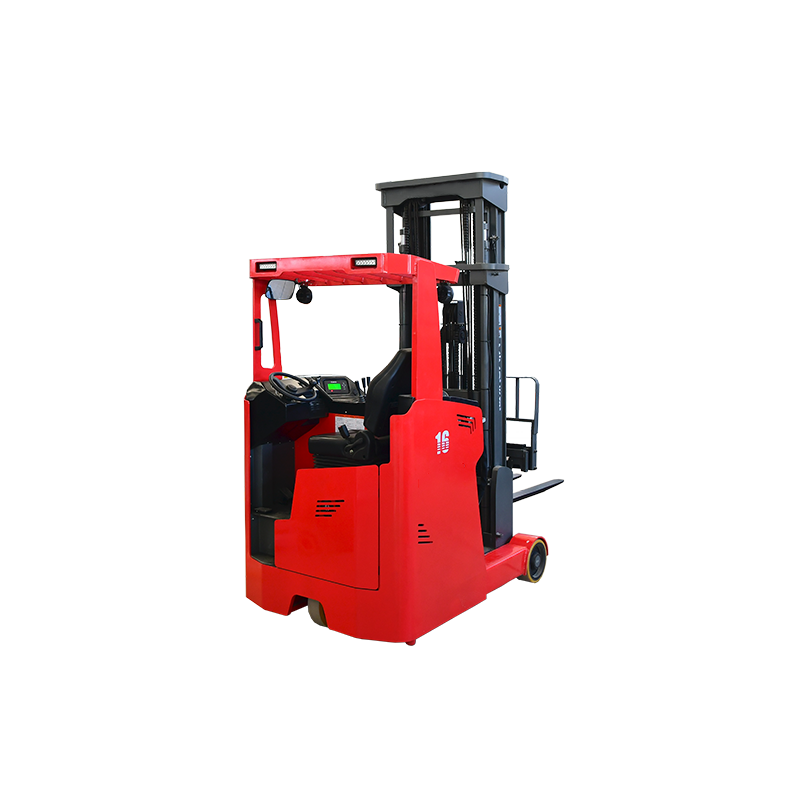

1.6/2.0T Seated Electric Reach Truck MFZ16/MFZ20

MFZ series is a seated reach forklift truck with a load capacity of 1.6-2.0 tons; the gantry can be moved forward or retracted as a whole, which has a smaller body, turning radius and higher working efficiency.

Quantity:
Availability:





Inquire Add to Basket

Standard
1.1	Model		MFZ16(Standard mast)	MFZ20(Standard mast)
1.2	Power type		Battery	Battery
1.3	Driving style		Seated	Seated
1.4	Rated load	Q(kg)	1600	2000
1.5	Load center	C(mm)	500	500
1.6	Front overhang	x(mm)	205	205
1.7	Wheelbase	y(mm)	1425	1525
Weight
2.1	Service weight(incl. battery)	kg	3710	4000
Wheel
3.1	Wheel type		PU	PU
3.2	Load wheel size	mm	φ300×120	φ300×120
3.3	Drive wheel size	mm	φ343×120	φ350×120
3.4	Auxiliary wheel size	mm	/	/
3.5	Number of wheels,front/rear(x=drive wheel)		2/ 1X	2/ 1X
3.6	Wheel tread,drive side	b10(mm)	/	/
3.7	Wheel tread,load side	b11(mm)	1170	1170
Size
4.1	Fork tilt	α/β(°)	3/5	3/5
4.2	Mast closed height	h1(mm)	refer to the mast specification	refer to the mast specification
4.3	Free Lift height	h2(mm)	refer to the mast specification	refer to the mast specification
4.4	Lift height	h3(mm)	refer to the mast specification	refer to the mast specification
4.5	Mast extended height with load-backrest	h4(mm)	refer to the mast specification	refer to the mast specification
4.6	Overhead guard height	h6(mm)	2200	2200
4.7	Pedal height	h7(mm)	376	376
4.8	Overall length	l1(mm)	2340	2421
4.9	Overall width	b1/b2(mm)	1270/1290	1270/1290
4.10	Fork size	l/e/s(mm)	1070×100×35	1070×122×40
4.11	Fork carriage width	b3(mm)	1090	1090
4.12	Fork outside width	b5(mm)	222-750	266-772
4.13	Inner leg width	b4(mm)	890	890
4.14	Reach stroke	l4(mm)	583	617
4.15	Mast ground clearance	m1(mm)	75	75
4.16	Aisle width for pallet 1000*1200mm(C=500mm)	Ast(mm)	2764	2838
4.17	Aisle width for pallet 800*1200mm(C=600mm)	Ast(mm)	2814	2882
4.18	Turning radius	Wa(mm)	1700	1798
Function
5.1	Driving speed(load/unload)	km/h	14/14	14/14
5.2	Lifting speed(load/unload)	mm/s	280/380	340/440
5.3	Lowering speed(load/unload)	mm/s	380/340	420/360
5.4	Maximum climbing ability, load/unloaded	%(tanθ )	10	10
5.5	Braking method		Mechanical	Mechanical
Drive
6.1	Drive motor power (S2-60min)	kw	6.5	6.5
6.2	Lift motor power, (S3-15%)	kw	8.6	12.8
6.3	Lead acid battery, voltage/capacity	V/Ah	48/420	48/560
6.4	Options: Lithium battery voltage/capacity	V/Ah	48/300	48/450
6.5	Battery weight	kg	715	920
6.6	Steering system		EPS	EPS
Other
7.1	Battery replacement method		Front pull	Front pull
[1]: Free lifting height is not including the size of the shelf, when including the standard shelf need to subtract 270mm;
[2]: The length of the whole truck increases about 60mm when side shifter is added;
[3]: When side shifter is added, the maximum outside width of the fork is 725mm
