| Quantity: | |
|---|---|
| Standard | ||||

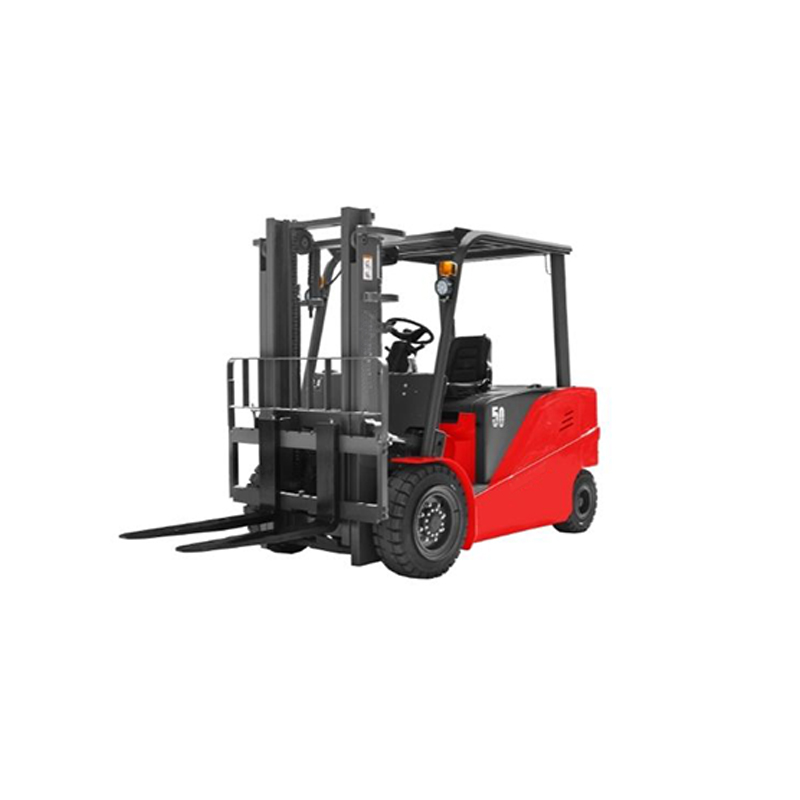

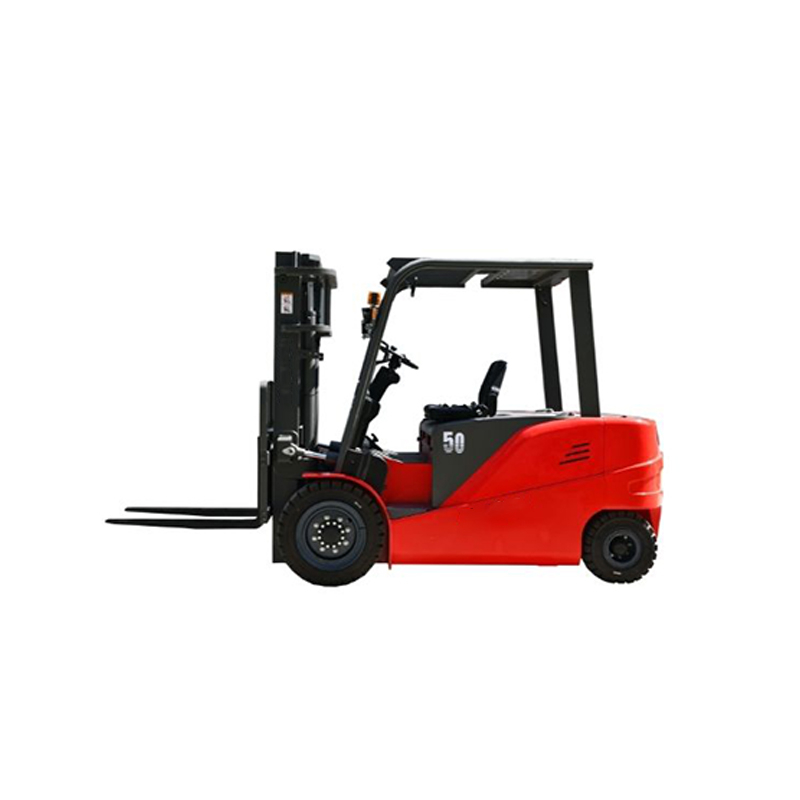

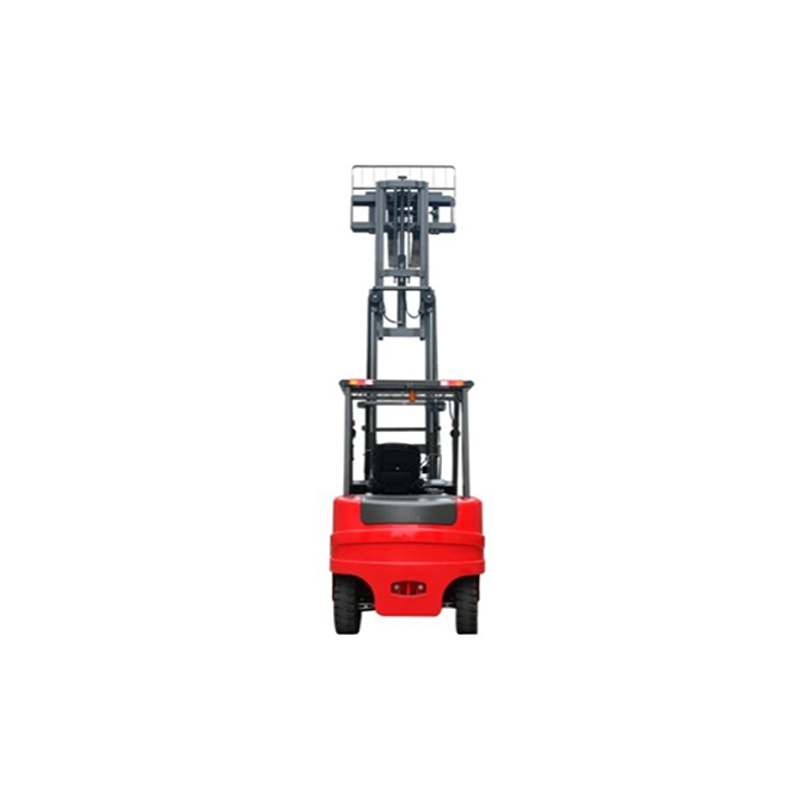

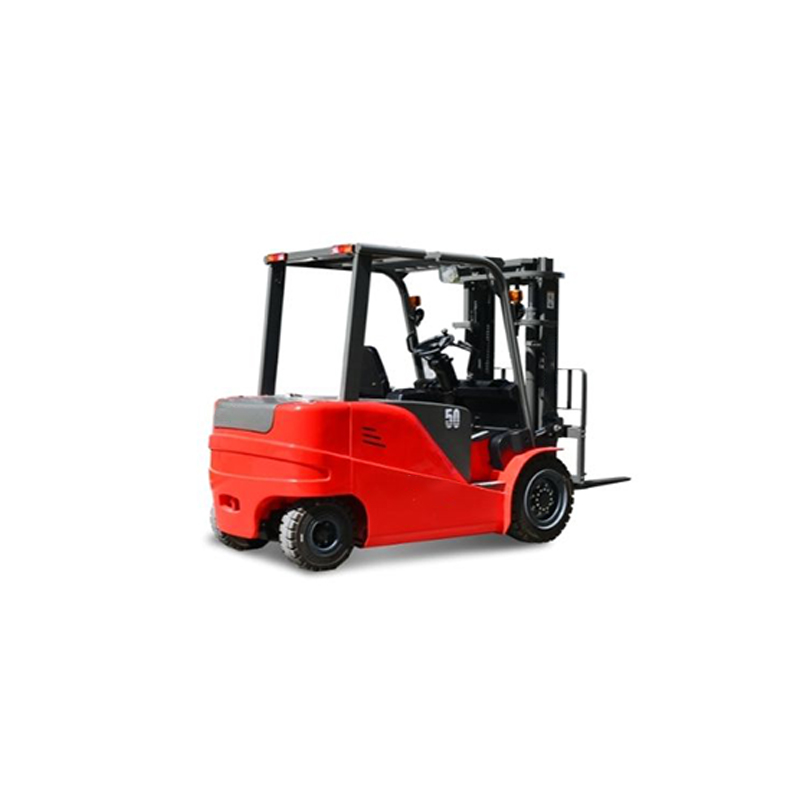

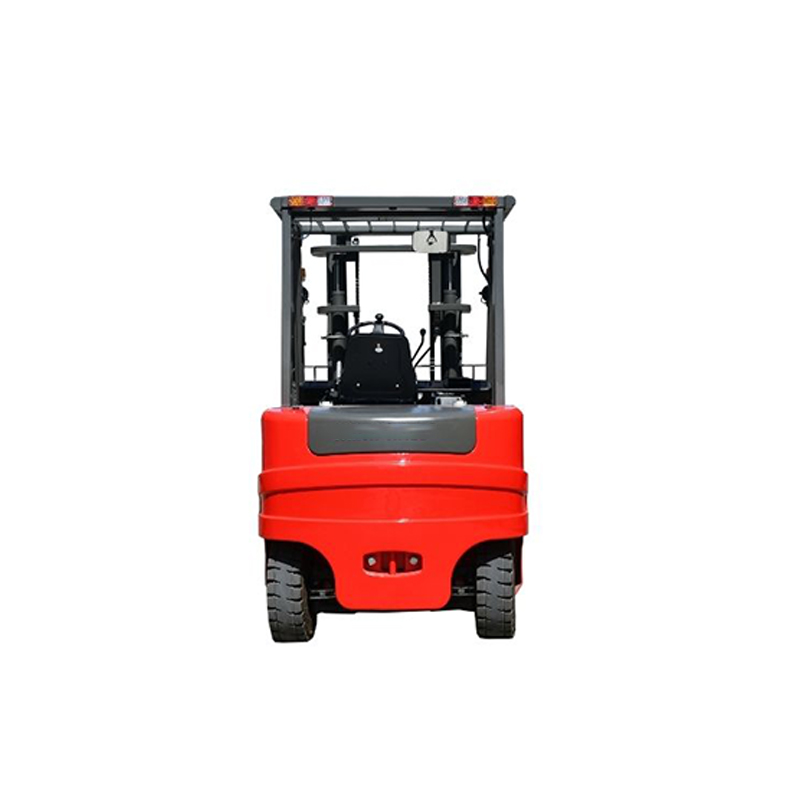

| 1.1 | Model | MK45 | MK50 | |
| 1.2 | Power Type | Battery | Battery | |
| 1.3 | Driving Style | Seated | Seated | |

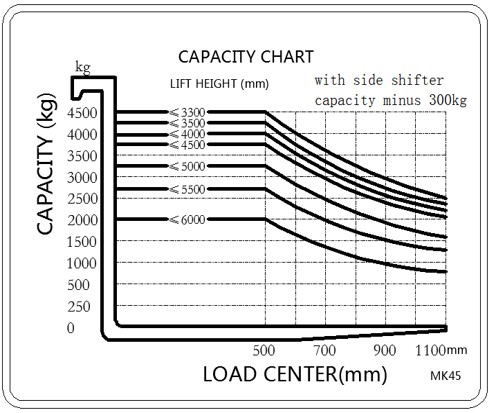

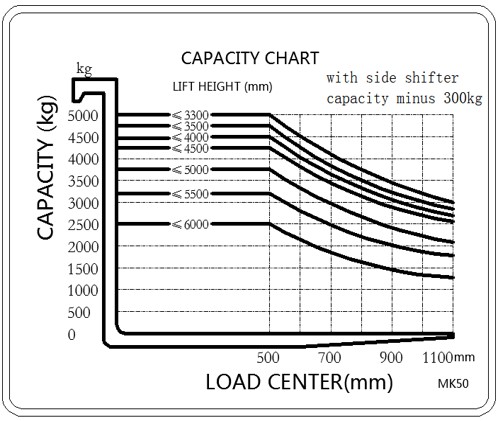

| 1.4 | Rated load | Q(kg) | 4500 | 4999 |
| 1.5 | Load Center | C(mm) | 500 | 500 |

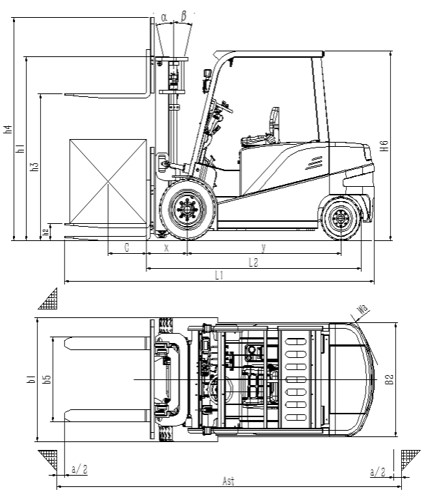

| 1.6 | Front Overhand | x(mm) | 530 | 530 |
| 1.8 | Wheelbase | y(mm) | 2000 | 2000 |
| Weight | ||||
| 2.1 | Service Weight(incl.battery) | kg | 6800 | 7100 |
| Wheel | ||||
| 3.1 | Wheel Types | Solid rubber tyre | Solid rubber tyre | |
| 3.2 | Load wheel size | mm | 540×205-230 | 540×205-230 |
| 3.3 | Drive wheel size | mm | 250-381 | 250-381 |
| 3.5 | Number of wheels,,front/rear(x=drive wheel) | 2x/2 | 2x/2 | |
| 3.6 | Wheel tread,drive side | b10(mm) | 1225 | 1225 |
| 3.7 | Wheel tread,load side | b11(mm) | 1025 | 1025 |
| Size | ||||
| 4.1 | Mast tilting | α/β(°) | 6/11 | 6/11 |
| 4.2 | Mast closed height | h1(mm) | Refer to the mast specification | Refer to the mast specification |
| 4.3 | Free lift height | h2(mm) | Refer to the mast specification | Refer to the mast specification |
| 4.4 | Lift height | h3(mm) | Refer to the mast specification | Refer to the mast specification |
| 4.5 | Mast extended height with load-backrest | h4(mm) | Refer to the mast specification | Refer to the mast specification |
| 4.7 | Overhead guard height | h6(mm) | 2250 | 2250 |
| 4.8 | Seat height | h7(mm) | 1230 | 1230 |
| 4.19 | Overall length | L1(mm) | 4060 | 4060 |
| 4.20 | Length to fork face | L2(mm) | 2990 | 2990 |
| 4.21 | Overall width | b1/b2(mm) | 1470/1350 | 1470/1350 |
| 4.22 | Fork size | l/e/s(mm) | 1070/150/50 | 1070/150/50 |
| 4.23 | Installation level | 3A | 3A | |
| 4.24 | Fork carriage width | b3(mm) | 1380 | 1380 |
| 4.25 | Fork outside width | b5(mm) | 320~1320 | 320～1320 |
| 4.31 | Mast ground clearance | m1(mm) | 120 | 120 |
| 4.32 | Body ground clearance | m2(mm) | 120 | 120 |
| 4.34 | Aisle width (pallet size 1000*1200mm,500mm load center ) | Ast(mm) | 4490 | 4490 |
| Aisle width (pallet size 800*1200mm,600mm load center ) | Ast(mm) | 4690 | 4690 | |
| 4.35 | Turning radius | Wa(mm) | 2690 | 2690 |
| Function | ||||
| 5.1 | Driving speed,load/unload | km/h | 12/13 | 12/13 |
| 5.2 | Lifting speed,load/unload | mm/s | 200/220 | 200/220 |
| 5.3 | Lowering speed,load/unload | mm/s | 270/290 | 270/290 |
| 5.5 | Traction capacity,load/unload(S2-5min) | N | 15400 | 15680 |
| 5.8 | Max.Gradeability,load/unload(S2-5min) | %(tanθ ) | 15/15 | 15/15 |
| 5.10 | Braking method | Mechanical hydraulic | Mechanical hydraulic | |
| Drive | ||||
| 6.1 | Driving motor(S2-60min) | kw | AC16.6 | AC16.6 |
| 6.2 | Lifting motor(S3-15%) | kw | AC15 | AC15 |
| 6.4 | Battery voltage/capacity | V/Ah | 80/560 | 80/630 |
| 6.5 | Battery weight | kg | 1390 | 1690 |
| 6.6 | Steering system | Hydraulic type | Hydraulic type | |
| Other | ||||
| 7.1 | Lithium battery configuration | V/Ah | 80/450 | 80/525 |
The standard model data would vary according to the configuration
