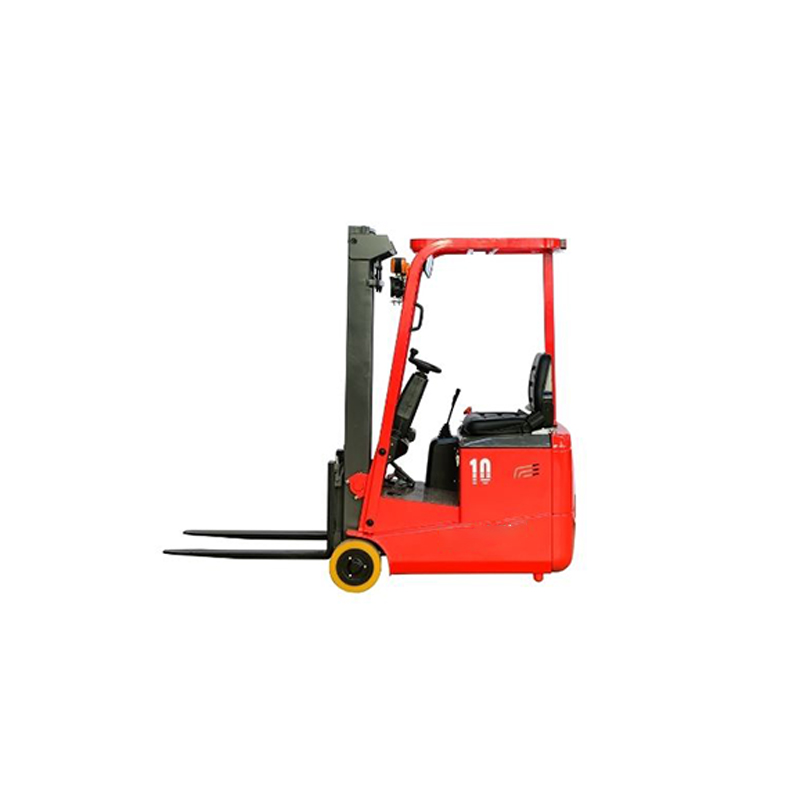

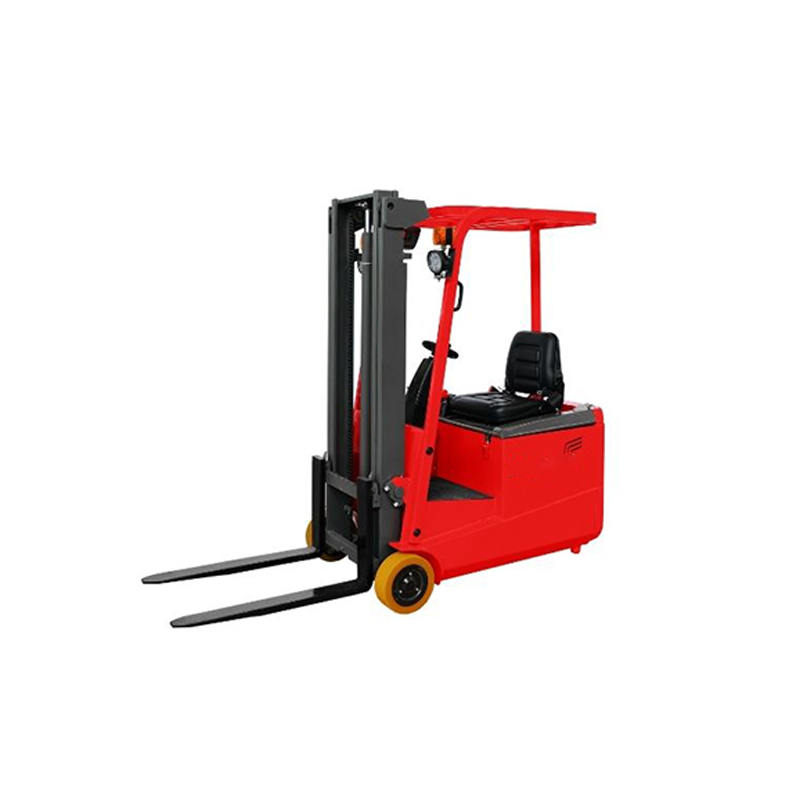

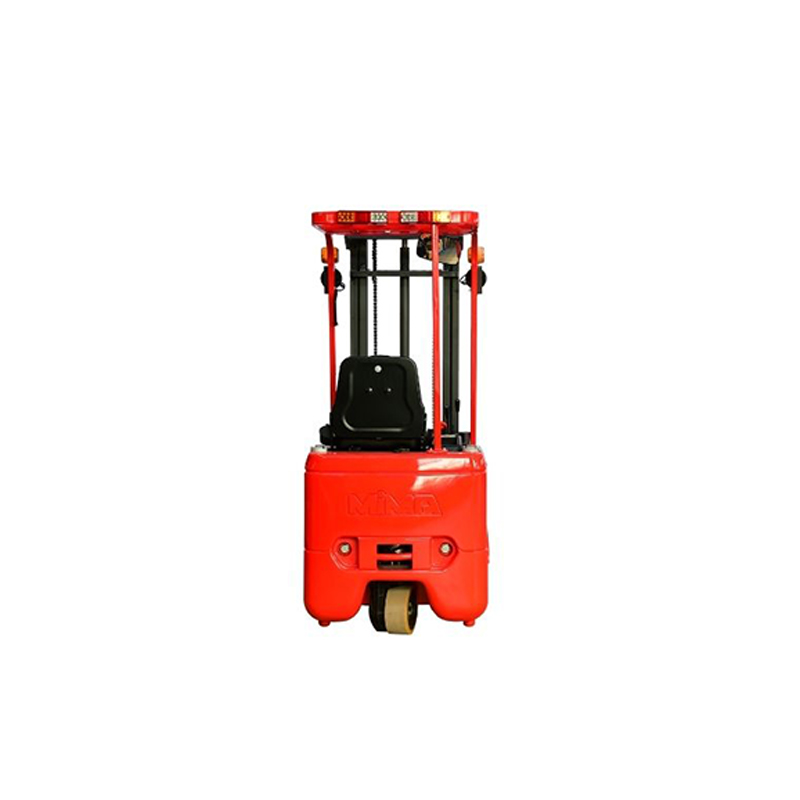

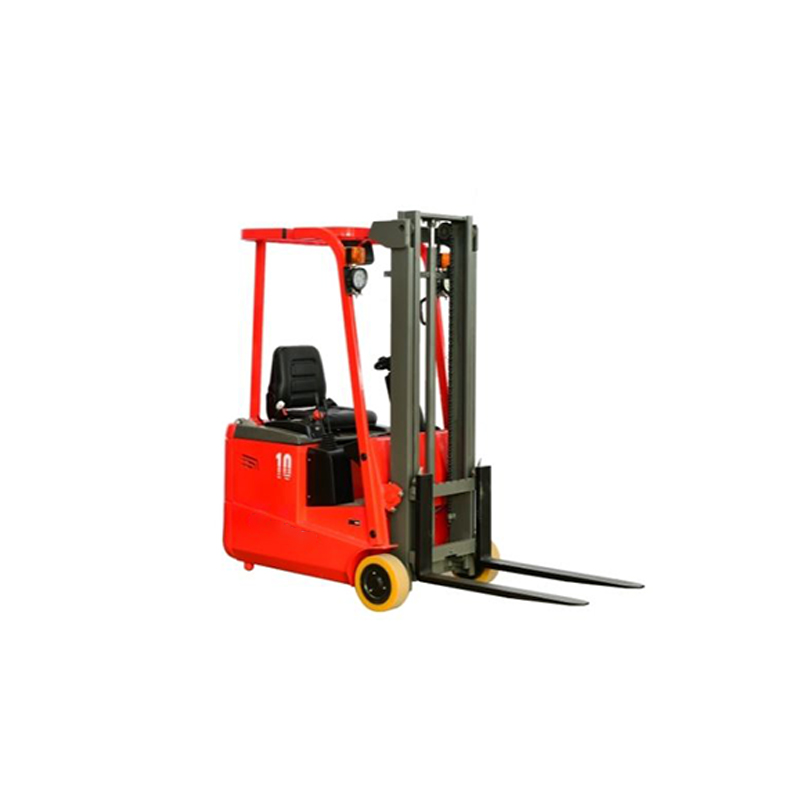

1.0/1.5T 3-Wheel Electric Forklift TKA10/15

Counterbalance Forklift Truck is a light forklift that is suitable for small spaces and floor work due to its small size and light weight
Horizontal handling
Stacking in narrower channels

Quantity:
Availability:





Inquire Add to Basket

Standard
1.1	Model		TKA10	TKA15	TKA15
1.2	Power Type		Battery	Battery	Battery
1.3	Operation Type		Seated	Seated	Seated

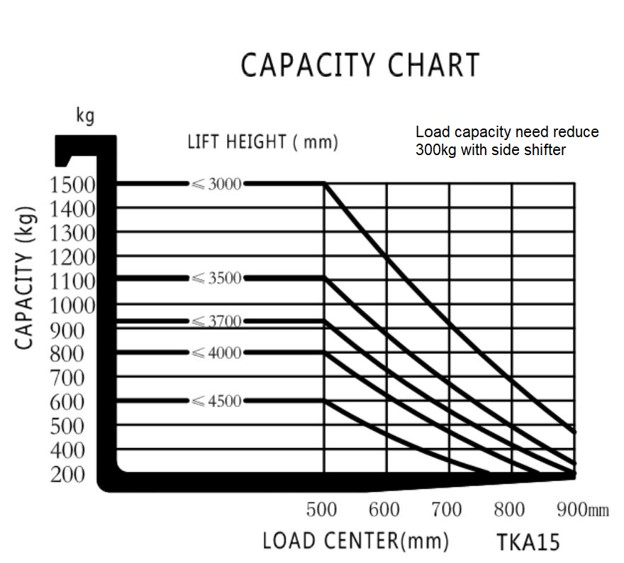

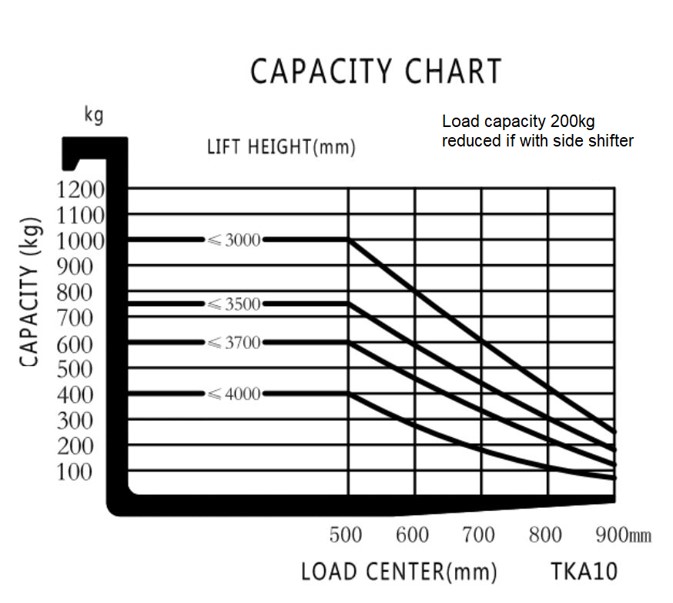

1.4	Rated Capacity	Q(kg)	1000	1500	1500
1.5	Load Center	C(mm)	500	500	500
1.6	Front Overhand	x(mm)	168	168	175
1.8	Wheelbase	y(mm)	975~990~1020	1127~1142~1172	996~1018~1060
Weight
2.1	Service Weight(incl.battery)	kg	1700	1990	2250
2.2	Axle load, unloaded	kg	335 /2365	390/3170	350/3400
2.3	Axle load, loaded	kg	1045 /655	1250/750	1450/800
Wheel
3.1	Wheel Types		PU	PU	PU/Solid rubber
3.2	Load Wheel	mm	φ285×100	φ285×100	φ305×140
3.3	Drive wheel	mm	φ230×110	φ280×135	φ280×135
3.5	Number of wheels,front/rear(x=drive wheel)		2 / 1X	/	2 / 1X
3.6	Wheel tread,drive side	b10(mm)	/	2 / 1X	/
3.7	Wheel tread,load side	b11(mm)	804	804	870
Size

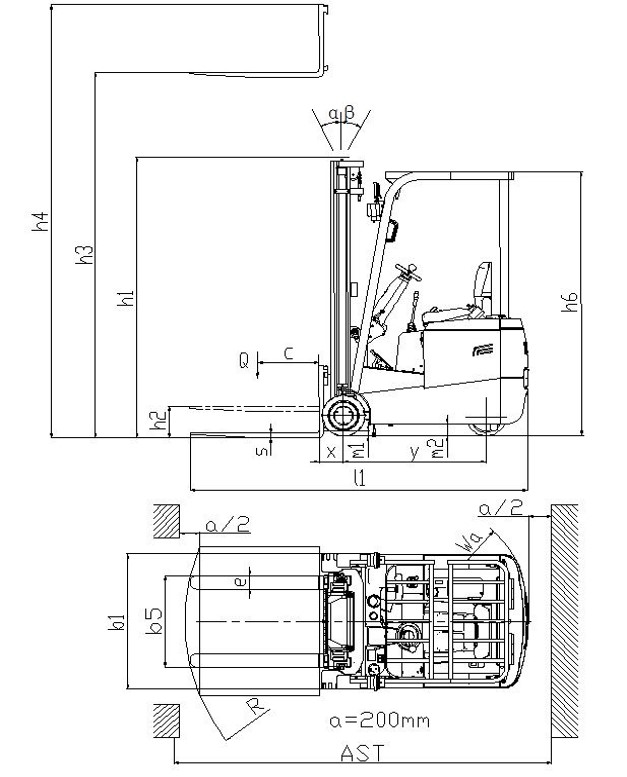

4.1	Mast tilting	α/β(°)	2/4	2/4	2/4
4.2	Mast closed height	h1(mm)	Refer to the mast specification	Refer to the mast specification	Refer to the mast specification
4.3	Free lift height	h2(mm)	Refer to the mast specification	Refer to the mast specification	Refer to the mast specification
4.4	Lift height	h3(mm)	Refer to the mast specification	Refer to the mast specification	Refer to the mast specification
4.5	Mast extended height	h4(mm)	Refer to the mast specification	Refer to the mast specification	Refer to the mast specification
4.7	Overhead guard height	h6(mm)	1965	1965	1965
4.8	Seat height	h7(mm)	930	930	930
4.9	Overall length	L1(mm)	2330	2496	2415
4.10	Length to fork face	L2(mm)	1410	1576	1495
4.11	Overall width	b1/b2(mm)	912	912	1010
4.12	Fork size	l/e/s(mm)	920/100/35	920/100/35	920/100/35
4.13	Installation level		2A	2A	2A
4.14	Fork carriage width	b3(mm)	620	620	680
4.15	Fork outside width	b5(mm)	220～620	220～620	220～680
4.16	Mast ground clearance	m1(mm)	90	90	80
4.17	Body ground clearance	m2(mm)	90	90	90
4.18	Aisle width for pallet 1000*1200	Ast(mm)	2760	2925	2845
4.19	Aisle width for pallet 800*1200	Ast(mm)	2870	3037	2960
4.20	Turning radius	Wa(mm)	1255	1415	1325
Function
5.1	Driving speed(load/unload)	km/h	6/7	6/7	6/7
5.2	Lifting speed(load/unload)	mm/s	150/190	125/200	125/250
5.3	Lowering speed(load/unload)	mm/s	350/250	350/250	350/300
5.4	Max.Gradeability(load/unload)(S2-5min)	%(tanθ )	8/10	5/10	8/10
5.5	Brake type		Hydraulic+Electromagnetic	Hydraulic+Electromagnetic	Hydraulic+Electromagnetic
Drive
6.1	Driving motor(S2-60min)	kw	1.5	2.3	2.3
6.2	Lifting motor(S3-15%)	kw	2	3	3.5
6.4	Lead acid battery, voltage/capacity	V/Ah	24/300	24/350	24/480
6.5	Battery weight	kg	277	290	370
6.6	Steering system		EPS	EPS	EPS
Option	Lithium battery	V/Ah	24/200	24/200	24/300
