| Quantity: | |
|---|---|

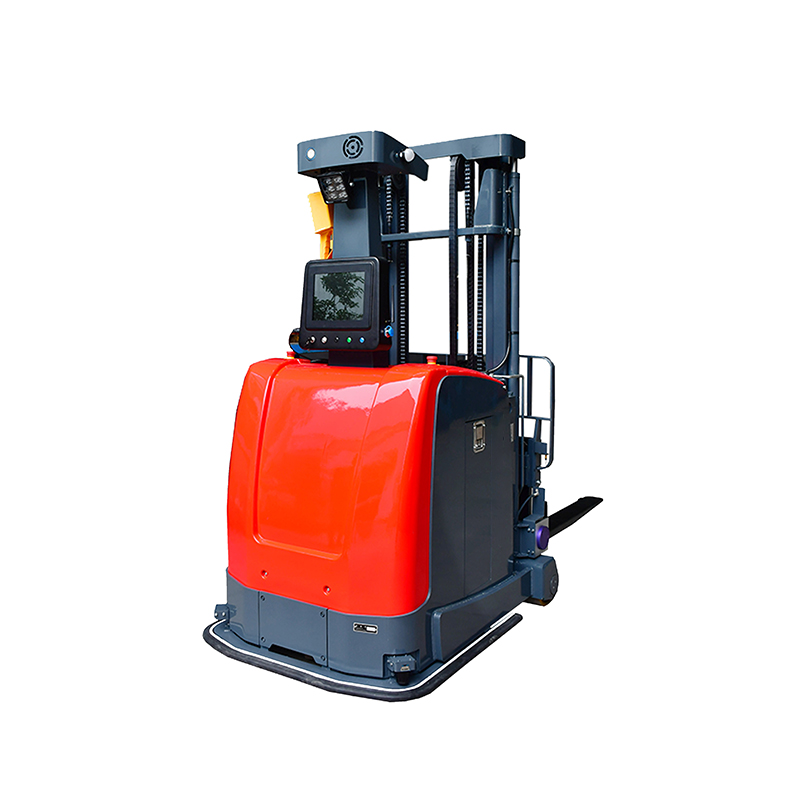

| Characteristics | 1.1 | Model | MBV1530 | MBV2030 | |
| 1.2 | Power type | Li-ion battery | Li-ion battery | ||
| 1.3 | Driving style | Walking style | Walking style | ||
| 1.4 | Rated load | Q(kg) | 1500 | 2000 | |
| 1.5 | Load center | C(mm) | 500 | 500 | |
| 1.6 | Front overhang | x(mm) | 133 | 133 | |
| 1.7 | Wheelbase | y(mm) | 1000 | 1450 | |
| Weights | 2.1 | Service weight(incl.battery) | kg | 2700 | 3220 |
| 2.2 | Unload axle, drive side/load side | kg | 1150/1550 | 1510/1710 | |
| 2.3 | Load axle,drive side/load side | kg | 3640/560 | 4230/870 | |
| 3.1 | Wheel type,drive side/load side | PU | PU | ||
| 3.2 | Tyre size,load side | mm | φ210×55 | φ210×55 | |
| 3.3 | Tyre size, drive side | mm | φ254×100 | φ254×100 | |
| 3.5 | Wheel quantity,front/rear(X= drive) | 4/1x | 4/1x | ||
| 3.6 | Wheel tread,drive side | b3(mm) | - | - | |
| 3.7 | Wheel tread,load side | b4(mm) | 906 | 906 | |

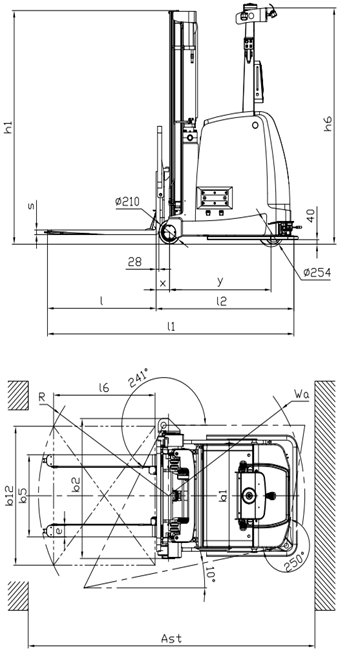

| Dimensions | 4.1 | Tilt of fork | α/β(°) | - | - |
| 4.2 | Height of mast closed | h1(mm) | 2020 | 2020 | |
| 4.3 | Lifting height | h3(mm) | 3000 | 3000 | |
| 4.4 | Height of mast extend with load-backrest | h4(mm) | 3935 | 3935 | |
| 4.5 | Reference height of navigator support | h6(mm) | 2045 | 2045 | |
| 4.6 | Overall length(excluding safety contact) | L1(mm) | 2427【1】 | 2877【1】 | |
| 4.7 | Overall width(excluding safety contact) | b1/b2(mm) | 978/1209【2】 | 978/1209【2】 | |
| 4.8 | Fork dimentions | l/e/s(mm) | 1070/100/40 | 1070/100/40 | |
| 4.9 | Installation level | 2A | 2A | ||
| 4.10 | Fork carriage width | mm | 750 | 750 | |
| 4.11 | Fork outside width | b6(mm) | 460/560/680【3】 | 460/560/680【3】 | |
| 4.12 | Ground clearance of mast | m1(mm) | 80 | 80 | |
| 4.13 | Ground clearance of body | m2(mm) | 70 | 70 | |
| 4.14 | Right angle Stacking aisle width(pallet 1000×1200) 1200 cross fork direction C500 | Ast(mm) | 2800 | 3250 | |
| 4.15 | Right angle Stacking aisle width(pallet 800×1200) 1200 cross fork direction C600 | Ast(mm) | |||
| 4.16 | Turning radius | Wa(mm) | 1300【4】 | 1730【4】 | |
| Performances | 5.1 | Drive speed(Manual mode) | m/s | 1【5】 | 1【5】 |
| 5.2 | Lift speed.load/unload(Manual mode) | mm/s | 100/150 | 80/150 | |
| 5.3 | Lower speed, load/unload(Manual mode) | mm/s | 150-250/＞100 | 150-250/＞100 | |
| 5.4 | Max. climbing ability load/unload (S2-5min) | %(tanθ ) | 5/5 | 5/5 | |
| 5.5 | Brake type | Electromagnetic | Electromagnetic | ||
| Drive | 6.1 | Driving motor power (S2-60min) | kw | AC 2.5 | AC 2.5 |
| 6.2 | Lifting motor power (S3-10%) | kw | DC 3 | DC 3 | |
| 6.3 | Lithium battery voltage/capacity | V/Ah | 24V/230AH（According to the technical agreement） | 24V/230AH（According to the technical agreement） | |
| 6.4 | Battery weight | kg | 95 | 95 | |
| 6.5 | Steering system | EPS | EPS | ||
| Note! | 【1】The length of the whole forklift with safety touch edge need to add about 44mm; | ||||
| 【2】The width of the whole forklift with safety touch edge need to add about 1048/1209mm; | |||||
| 【3】If the outer distance of the fork is more than 710mm, the load capacity will be lowered and reviewed | |||||
| 【4】The turning radius of safety tunch edge is 1342mm; | |||||
| 【5】The maximum speed of automatic mode is 1.5m/s. | |||||
