| Standard | ||||
| 1.1 | Model | TKC16 | TKC20 | |
| 1.2 | Power Type | Battery | Battery | |
| 1.3 | Operation Type | Seated | Seated | |

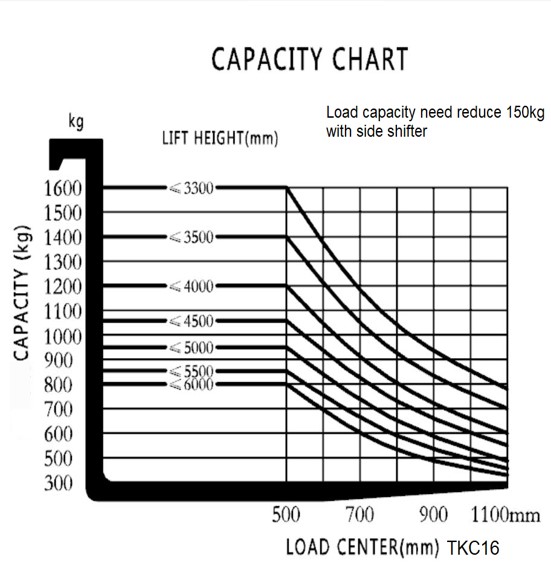

| 1.4 | Rated Capacity | Q(kg) | 1600 | 2000 |
| 1.5 | Load Center | C(mm) | 500 | 500 |

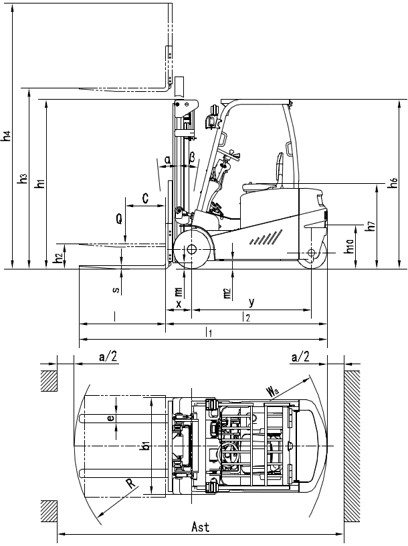

| 1.6 | Front Overhand | x(mm) | 345 | 345 |
| 1.8 | Wheelbase | y(mm) | 1480 | 1480 |
| Weight | ||||
| 2.1 | Service Weight(incl.battery) | kg | 3050 | 3200 |
| Wheel | ||||
| 3.1 | Wheel Types | Solid rubber tire | Solid rubber tire | |
| 3.2 | Load Wheel | mm | 15×4.5-8 | 15×4.5-8 |
| 3.3 | Drive wheel | mm | 18×7-8 | 200/50-10 |
| 3.5 | Number of wheels,,front/rear(x=drive wheel) | 2x/2 | 2x/2 | |
| 3.6 | Wheel tread,drive side | b10(mm) | 1080 | 1050 |
| 3.7 | Wheel tread,load side | b11(mm) | 180 | 180 |
| Size | ||||
| 4.1 | Mast tilting | α/β(°) | 6/6 | 6/6 |
| 4.2 | Mast closed height | h1(mm) | Refer to the mast specification | Refer to the mast specification |
| 4.3 | Free lift height | h2(mm) | Refer to the mast specification | Refer to the mast specification |
| 4.4 | Lift height | h3(mm) | Refer to the mast specification | Refer to the mast specification |
| 4.5 | Mast extended height | h4(mm) | Refer to the mast specification | Refer to the mast specification |
| 4.7 | Overhead guard height | h6(mm) | 2000 | 2000 |
| 4.8 | Seat height | h7(mm) | 1055 | 1055 |
| 4.9 | Overall length | L1(mm) | 3090 | 3090 |
| 4.10 | Length to fork face | L2(mm) | 2020 | 2020 |
| 4.11 | Overall width | b1/b2(mm) | 1250 | 1250 |
| 4.12 | Fork size | l/e/s(mm) | 1070/100/35 | 1070/100/40 |
| 4.13 | Installation level | 2A | 2A | |
| 4.14 | Fork carriage width | b3(mm) | 1040 | 1040 |
| 4.15 | Fork outside width | b5(mm) | 222～1000 | 222～1000 |
| 4.16 | Mast ground clearance | m1(mm) | 90 | 90 |
| 4.17 | Body ground clearance | m2(mm) | 100 | 100 |
| 4.18 | Aisle width for pallet 1000*1200 | Ast(mm) | 3350 | 3350 |
| 4.19 | Turning radius | Wa(mm) | 1660 | 1660 |
| Function | ||||
| 5.1 | Driving speed(load/unload) | km/h | 12/13 | 12/13 |
| 5.2 | Lifting speed(load/unload) | mm/s | 260/340 | 260/340 |
| 5.3 | Max.Gradeability(load/unload)(S2-5min) | %(tanθ ) | 12/14 | 13/15 |
| 5.4 | Brake type | Hydraulic | Hydraulic | |
| Drive | ||||
| 6.1 | Driving motor(S2-60min) | kw | AC4.8×2 | AC4.8×2 |
| 6.2 | Lifting motor(S3-15%) | kw | AC8.6 | AC8.6 |
| 6.3 | Lead acid battery, voltage/capacity | V/Ah | 48/400 | 48/490 |
| 6.4 | Battery weight | kg | 645 | 770 |
