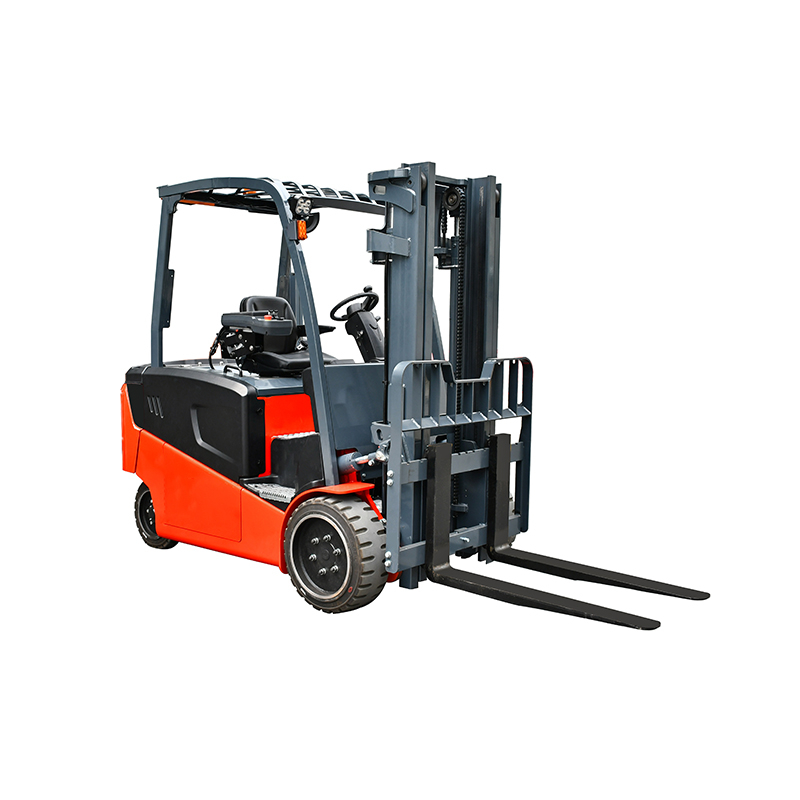

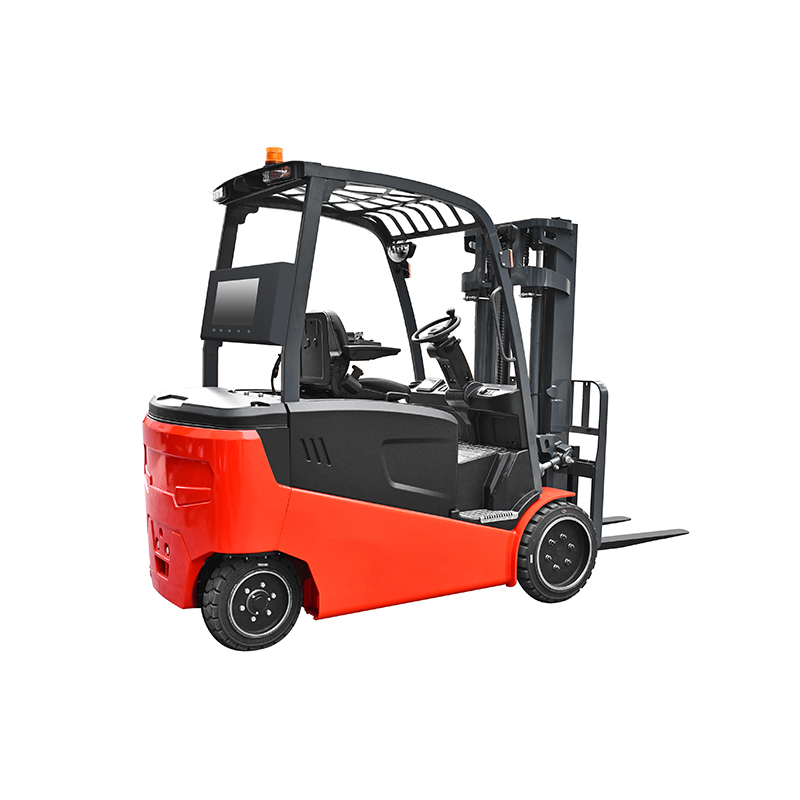

3.0/3.5/4.0T Counterbalance Forklift MKV30/35/40

The new MKV series high performance counterbalanced heavy forklift covers the AGV body and is compatible with manual driving.

Using the front double drive electric differential, double electric revolution design, maintenance free full AC configuration, high speed ratio gear box for greater climbing and escape to provide a guarantee, mainly to meet the customer's demand for efficiency priority, medium and heavy working conditions, high speed, large capacity battery, excellent man-machine engineering and easy operation, safety.

Quantity:
Availability:





Inquire Add to Basket

Standard	1.2	Model		MKV30	MKV35	MKV40
	1.3	Power Type		Battery	Battery	Battery
	1.4	Driving Style		Seated	Seated	Seated
	1.5	Rated load	Q(kg)	3000	3500	4000
	1.6	Load Center	C(mm)	500	500	500
	1.7	Front Overhand	x(mm)	412	417	417
	1.8	Wheelbase	y(mm)	1700	1700	1700
Weight	2.1	Service Weight(incl.battery)	kg	5250	5380	5950
	2.2	Bridge load at full load，drive side/load side	kg	/	7810/1060	/
	2.3	Bridge load at empty load，drive side/load side	kg	/	2490/2910	/
Wheel	3.1	Wheel Types		Solid tire	Solid tire	Solid tire
	3.2	Load wheel size	mm	457×152×308	457×152×308	457×152×308
	3.3	Drive wheel size	mm	559×178×406	559×203×406	559×229×406
	3.4	Number of wheels,,front/rear(x=drive wheel)		2X/2	2X/2	2X/2
	3.5	Wheel tread,drive side	b10(mm)	1125	1100	1115
	3.6	Wheel tread,load side	b11(mm)	780	780	780
Size	4.1	Mast tilting	α/β(°)	6/6	6/6	6/6
	4.2	Mast closed height	h1(mm)	Refer to mast specification	Refer to mast specification	Refer to mast specification
	4.3	Free lift height	h2(mm)	155	160	160
	4.4	Rated weight lifting height	h3(mm)	3300	3300	3300
	4.5	Lift height	h3(mm)	Refer to mast specification	Refer to mast specification	Refer to mast specification
	4.6	Mast extended height with load-backrest	h4(mm)	Refer to mast specification	Refer to mast specification	Refer to mast specification
	4.7	Overhead guard height	h6(mm)	2250	2250	2250
	4.8	Seat height	h7(mm)	1140	1140	1140
	4.9	Overall length	L1(mm)	3510	3510	3510
	4.10	Length to fork face	L2(mm)	2435	2440	2440
	4.11	Overall width	b1/b2(mm)	1300/1200	1300/1200	1340/1200
	4.12	Fork size	l/e/s(mm)	1070/125/45	1070/125/50	1070/125/50
	4.13	Installation level(ISO 2328)		3A	3A	3A
	4.14	Fork carriage width	b3(mm)	1100	1100	1100
	4.15	Fork outside width	b5(mm)	450～1050	450～1050	450～1050
	4.18	Mast ground clearance	m1(mm)	100	100	100
	4.19	Body ground clearance	m2(mm)	110	110	110
	4.20	Aisle width (pallet size 1000*1200mm,500mm load center )	mm	3760	3760	3760
	4.21	Aisle width (pallet size 800*1200mm,600mm load center )	mm	3890	3890	3890
	4.22	Other aisle width	mm	Refer to stacking aisle specification	Refer to stacking aisle specification	Refer to stacking aisle specification
	4.21	Turning radius	Wa(mm)	2025	2025	2025
Function	5.1	Driving speed,load/unload （Manul）	km/h	15/15	15/15	15/15
	5.2	Driving speed,load/unload （Auto）	km/h	7/8	7/8	7/8
	5.3	Lifting speed,load/unload	mm/s	/	/	/
	5.4	Lowering speed,load/unload	mm/s	/	/	/
	5.5	Traction capacity,load/unload(S2-5min)	N
	5.6	Max.Gradeability,load/unload(S2-5min)	%(tanθ)	15/15	14/15	13/15
	5.7	Braking mode ,driving （Manul）		Hydraulic type	Hydraulic type	Hydraulic type
	5.8	Braking mode ,driving （Auto）		Electromagnetic	Electromagnetic	Electromagnetic
	5.9	Braking mode ,parking		Electromagnetic	Electromagnetic	Electromagnetic
Drive	6.1	Driving motor(S2-60min)	kw	AC6×2	AC6×2	AC6×2
	6.2	Lifting motor(S3-15%)	kw	AC12.8	AC12.8	AC12.8
	6.3	Battery voltage/capacity	V/Ah	80/304	80/460	80/460
	6.4	Battery weight	kg	295	380	380
	6.5	Steering system	kw	AC0.75×2	AC0.75×2	AC0.75×2
Option	7.1	Lithium battery configuration	V/Ah	80/460	/	/

The standard model data would vary according to the configuration

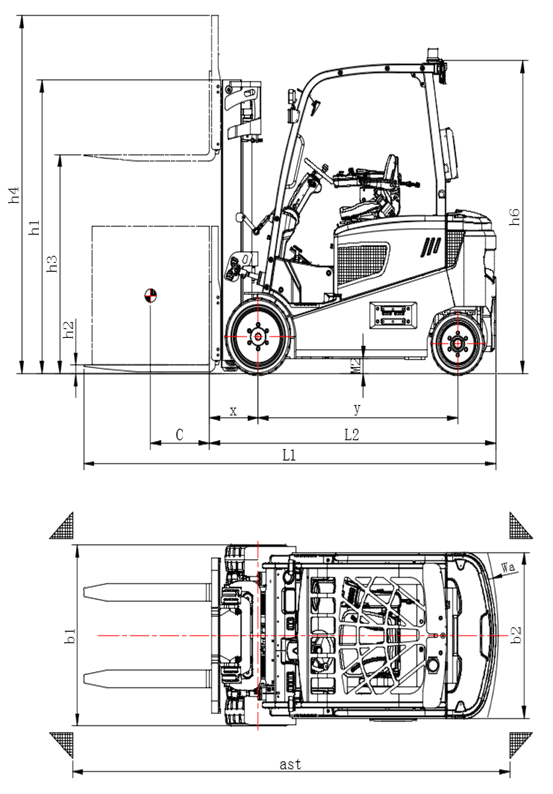

2D View

★ Adopt a new concept, a novel streamlined appearance design, which improves the visual effect. The overall appearance is small, simple, and solid and reliable.

★ Driving motor adopts an advanced horizontal parallel layout plan, sinks the battery to the bottom of the vehicle, with low center of gravity, good stability, excellent smoothness and driving control comfort.

★ Scientific human-machine engineering design steering wheel inclination angle can be adjusted, and the seats can be adjusted before and after, providing the operator with the best driving location.

★ The speed limit of the increase limit, automatic perception, and the reduction of the buffer function to effectively ensure the safety of the operation, while ensuring that the goods and tray do not impact the ground, and effectively protect the goods and the ground.

★ The whole department adopts a wide -looking wild door frame design, which is not easy to block the viewing line, providing the operator with a broad field of vision.

★ The new large-screen LED instrument has the function of power display, timing and fault diagnosis. The human -machine interactive interface is simple and easy to understand, excellent visuality, beautiful and generous, and intuitive reading.

★ The new imported Curtis controller is advanced and excellent and reliable; high-frequency MOSFET integrated controllers ensure walking and improvement control smooth and accurate control, excellent speed regulation performance, excellent motor electrical control performance, renewable braking and renewable energy ( Under the condition of deceleration and downhill, the forklift is converted into a generator, which is safe and reliable through the controller to charge the battery, energy conservation and efficiency), anti-connection brake, and slope anti-decline.

★ LED front lights, turning lights, warning lights, low energy saving, safe and reliable, providing good night work lighting and warning.

★ Ultra-low-top design can meet the operation under the limited conditions of ordinary containers and space.

★ International advanced MOSFET AC controller systems, make the operation of the forklift, steering, promotion, and inclined, all realize computer program control.

★ The battery side is designed to facilitate the replacement and maintenance of the battery.

★ AC motor exemption, maintenance costs such as carbon brushing without re-carbon brush, high efficiency of AC power systems, complete protection function, coming with speed sensors, temperature sensors, high reliability and long life.

★ Configure active drivers in a security monitoring OPS system to effectively improve operational safety.

★ The hydraulic system configuration side shift and fork-bonus operation, which effectively improves the convenience of operation, thereby improving operational efficiency.

★ Configure high-bright laser lights to provide reliable reference for operations in narrow lanes to ensure operational safety.
