| Standard | |||||

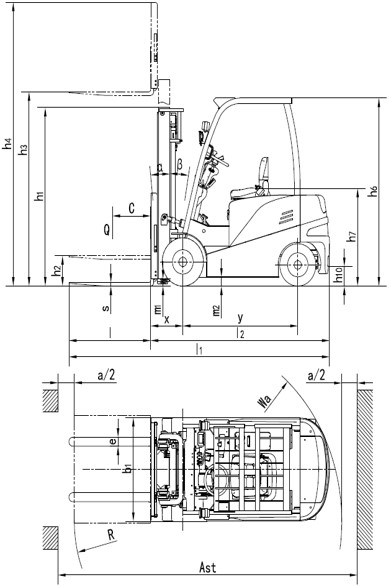

| 1.1 | Model | MK30 | MK35 | MK40 | |
| 1.2 | Power Type | Battery | Battery | Battery | |
| 1.3 | Driving Style | Seated | Seated | Seated | |
| 1.4 | Rated load | Q(kg) | 3000 | 3500 | 4000 |
| 1.5 | Load Center | C(mm) | 500 | 500 | 500 |
| 1.6 | Front Overhand | x(mm) | 433 | 484 | 484 |
| 1.8 | Wheelbase | y(mm) | 1700 | 1800 | 1800 |
| Weight | |||||
| 2.1 | Service Weight(incl.battery) | kg | 4460 | 4870 | 5300 |
| Wheel | |||||
| 3.1 | Wheel Types | Pneumatic tire | Pneumatic tire | Pneumatic tire | |
| 3.2 | Load wheel size | mm | 460×180-205 | 460×180-205 | 460×180-205 |
| 3.3 | Drive wheel size | mm | 590×230-260 | 590×260-305 | 590×260-305 |
| 3.5 | Number of wheels,,front/rear(x=drive wheel) | 2x/2 | 2x/2 | 2x/2 | |
| 3.6 | Wheel tread,drive side | b10(mm) | 970 | 1080 | 1080 |
| 3.7 | Wheel tread,load side | b11(mm) | 960 | 990 | 990 |
| Size | |||||
| 4.1 | Mast tilting | α/β(°) | 6/10 | 6/10 | 6/10 |
| 4.2 | Mast closed height | h1(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification |
| 4.3 | Free lift height | h2(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification |
| 4.4 | Lift height | h3(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification |
| 4.5 | Mast extended height with load-backrest | h4(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification |
| 4.7 | Overhead guard height | h6(mm) | 2130 | 2130 | 2130 |
| 4.8 | Seat height | h7(mm) | 1120 | 1120 | 1120 |
| 4.19 | Overall length | L1(mm) | 3620 | 3770 | 3770 |
| 4.2 | Length to fork face | L2(mm) | 2550 | 2700 | 2700 |
| 4.21 | Overall width | b1(mm) | 1200 | 1330 | 1330 |
| 4.22 | Fork size | l/e/s(mm) | 1070/125/45 | 1070/125/50 | 1070/125/50 |
| 4.23 | Installation level | 3A | 3A | 3A | |
| 4.24 | Fork carriage width | b3(mm) | 1100 | 1100 | 1100 |
| 4.25 | Fork outside width | b5(mm) | 250～1050 | 250～1050 | 250～1050 |
| 4.31 | Mast ground clearance | m1(mm) | 90 | 90 | 90 |
| 4.32 | Body ground clearance | m2(mm) | 100 | 100 | 100 |
| 4.34.1 | Aisle width (pallet size 1000*1200mm,500mm load center ) | Ast(mm) | 3920 | 4190 | 4190 |
| 4.34.2 | Aisle width (pallet size 800*1200mm,600mm load center ) | Ast(mm) | |||
| 4.35 | Turning radius | Wa(mm) | 2300 | 2450 | 2450 |
| Function | |||||
| 5.1 | Driving speed,load/unload | km/h | 10/12 | 10/12 | 10/12 |
| 5.2 | Lifting speed,load/unload | mm/s | 200/340 | 200/300 | 200/300 |
| 5.3 | Lowering speed,load/unload | mm/s | 300/460 | 300/460 | 300/460 |
| 5.5 | Traction capacity,load/unload(S2-5min) | N | / | / | / |
| 5.8 | Max.Gradeability,load/unload(S2-5min) | %(tanθ ) | 14/15 | 14/15 | 14/15 |
| 5.10 | Braking method | Hydraulic type | Hydraulic type | Hydraulic type | |
| Drive | |||||
| 6.1 | Driving motor(S2-60min) | kw | AC11.75 | AC14 | AC14 |
| 6.2 | Lifting motor(S3-15%) | kw | DC10 | DC10 | DC10 |
| 6.4 | Battery voltage/capacity | V/Ah | 80/400 | 80/400 | 80/450 |
| 6.5 | Battery weight | kg | 1070 | 1070 | 1195 |
| 6.6 | Steering system | Hydraulic type | Hydraulic type | Hydraulic type | |
| Other | |||||
| 7.1 | Lithium battery configuration | V/Ah | 80V/270AH | 80V/270AH | 80V/270AH |
| 8.1 | AC lifting motor，(S3-15%) | kw | AC13.5 | AC13.5 | AC13.5 |
The standard model data would vary according to the configuration.
