| Quantity: | |
|---|---|
| Standard | |||||

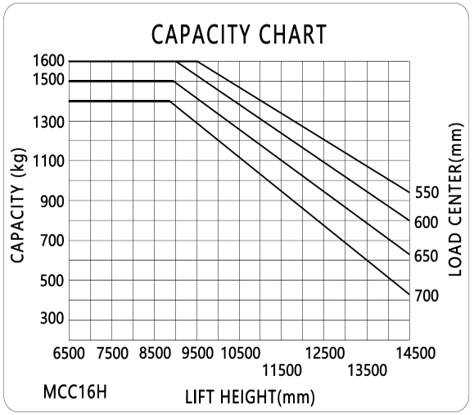

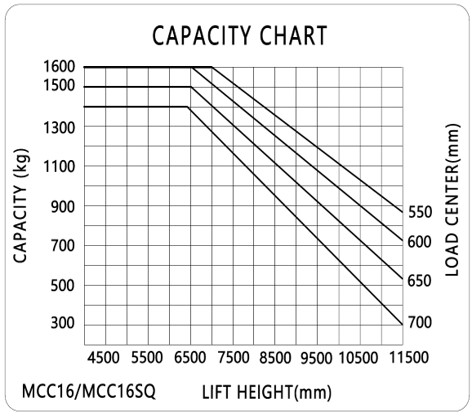

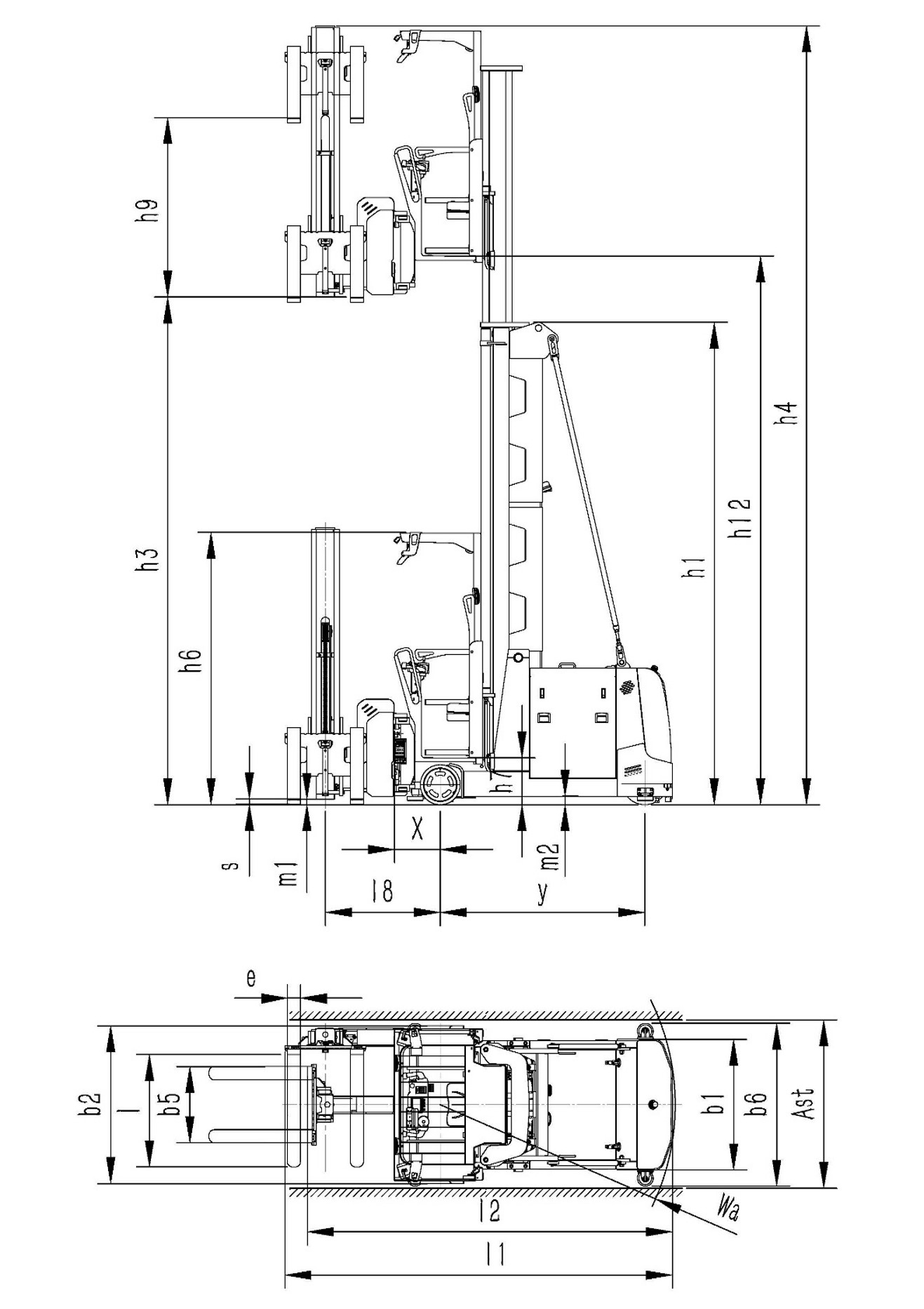

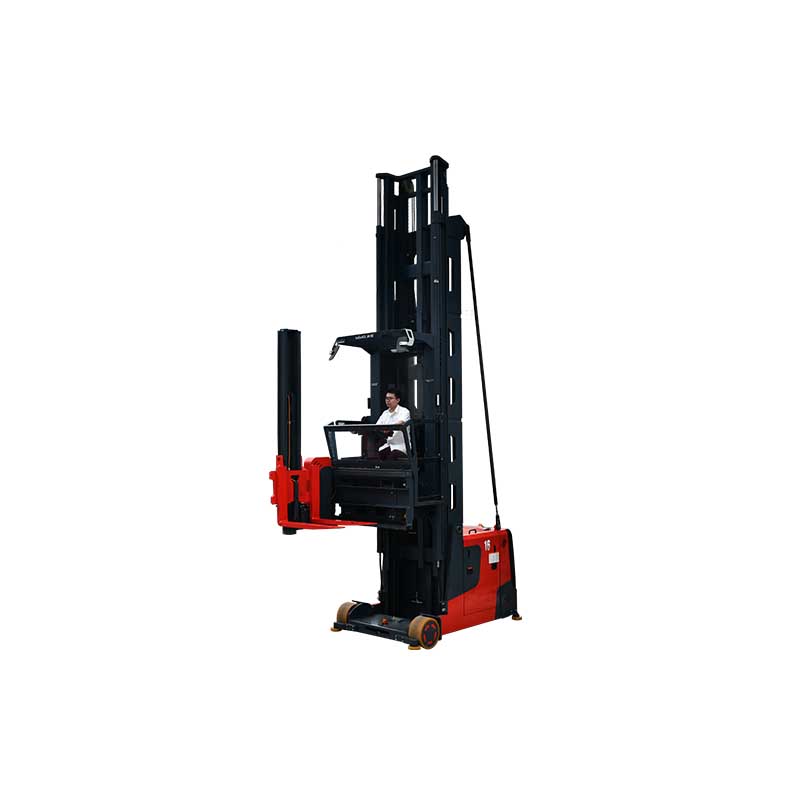

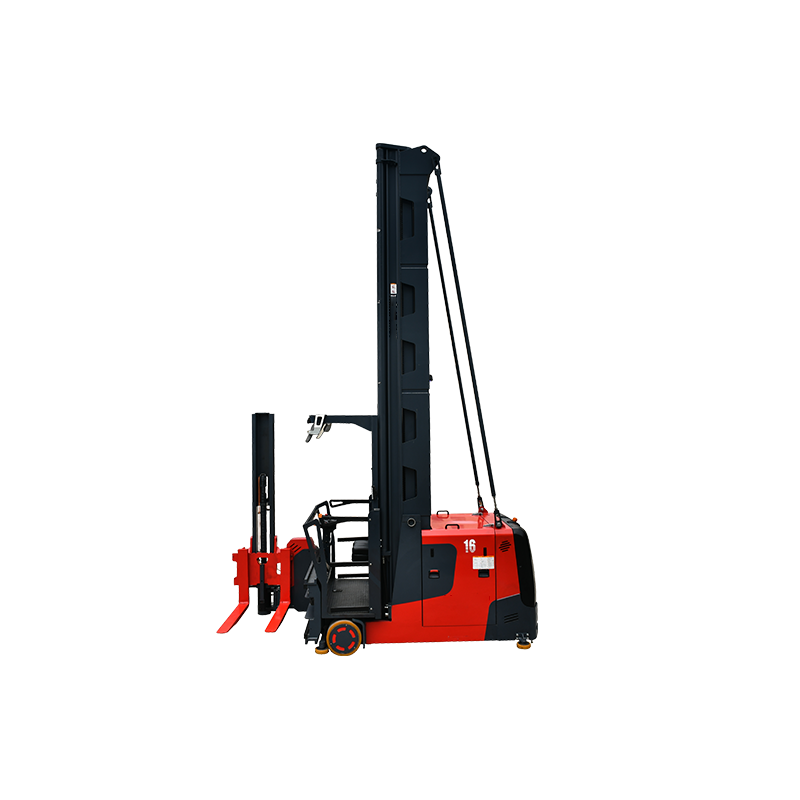

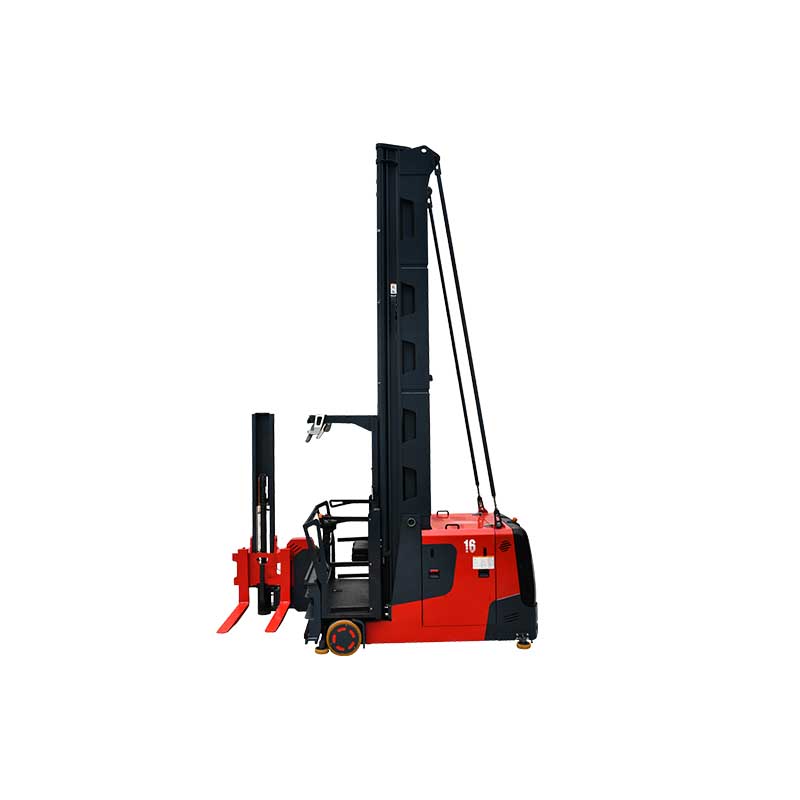

| 1.1 | Model | MCC16 | MCC16SQ | MCC16H | |
| 1.2 | Power type | Battery | Battery | Battery | |
| 1.3 | Driving style | stand/seat（man-up） | stand/seat（man-up） | stand/seat（man-up） | |
| 1.4 | Rated load | Q(kg) | 1600 | 1600 | 1600 |
| 1.5 | Load center | C(mm) | 600 | 600 | 600 |
| 1.6 | Front overhang | X(mm) | 435 | 435 | 435 |
| 1.7 | Wheelbase | y(mm) | 1950 | 2025 | 2250 |
| Weight | |||||
| 2.1 | Service weight(incl.battery） | kg | 7720 | 8375 | 10430 |
| Wheel | |||||
| 3.1 | Wheel type | PU | PU | PU | |
| 3.2 | Load wheel size | mm | φ380×192 | φ380×192 | φ380×192 |
| 3.3 | Drive wheel size | mm | φ400×160 | φ400×160 | φ400×160 |
| 3.4 | Number of wheels,front/rear(x=drive wheel) | 2 / 1X | 2 / 1X | 2 / 1X | |
| 3.5 | Wheel tread, load side | b11(mm) | 1310 | 1310 | 1460 |
| Size | |||||
| 4.1 | Mast closed height | h1(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification |
| 4.2 | Free lift height | h2(mm) | / | 305 | 2205 |
| 4.3 | Lift height of Main mast | h3(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification |
| 4.4 | Mast extended height | h4(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification |
| 4.5 | Overhead guard height | h6(mm) | 2590 | 2590 | 2590 |
| 4.6 | Stand board height | h7(mm) | 445 | 445 | 445 |
| 4.7 | Auxiliary lifting height | h9(mm) | 1700 | 1700 | 1700 |
| 4.8 | Lift height of the station board from the ground | h12(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification |
| 4.9 | Total lift height | h3+h9(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification |
| 4.10 | Max. picking height | h12+1600(mm) | Refer to the mast specification | Refer to the mast specification | Refer to the mast specification |
| 4.11 | Overall length ( Forks 90°) | l1(mm) | 3690 | 3765 | 3990 |
| 4.12 | Overall length(Forks 0°, to the vertical surface of the forks) | l2(mm) | 3475 | 3550 | 3775 |
| 4.13 | Overall width | b1/ b2(mm) | 1244/1502 | 1244/1502 | 1244/1652 |
| 4.14 | Fork size | l/e/s(mm) | 1200/125/50 | 1200/125/50 | 1200/125/50 |
| 4.15 | Installation level | II B | II B | II B | |
| 4.16 | Fork outside width | b5(mm) | 260～725 | 260～725 | 260～725 |
| 4.17 | Side shift distance | mm | 1300 | 1300 | 1350 |
| 4.18 | Distance between fork rotation center and front axle center | l8(mm) | 1095 | S | 1095 |
| 4.19 | Outer distance of guide wheel | b6(mm) | 1550 | 1550 | 1700 |
| 4.2 | Minimum ground clearance of mast | m1(mm) | 45 | 45 | 45 |
| 4.21 | Minimum ground clearance of body wheelbase center | m2(mm) | 80 | 80 | 80 |
| 4.22 | Turning radius | Wa(mm) | 2235 | 2310 | 2535 |
| 4.23 | Aisle width for pallet 1200×1200 | Ast(mm) | 1650 | 1650 | 1800 |
| 4.24 | Main aisle width | mm | ≥(4100+400) | ≥(4175+400) | ≥(4400+400) |
| Function | |||||
| 5.1 | Driving speed (load/unload) | km/h | 10/10 | 10/10 | 10/10 |
| 5.2 | Lifting speed (load/unload) | mm/s | 320/320 | 320/320 | 320/320 |
| 5.3 | Lowering speed (load/unload) | mm/s | 400/380 | 400/380 | 400/380 |
| 5.4 | Maximum climbing ability, load/unloaded (S2-5min) | %(tanθ ) | 5/8 | 5/8 | 5/8 |
| 5.5 | Drving brake type | Regenerative brake/hydraulic brake | Regenerative brake/hydraulic brake | Regenerative brake/hydraulic brake | |
| 5.6 | Parking brake type | Electromagnetic brake | Electromagnetic brake | Electromagnetic brake | |
| Drive | |||||
| 6.1 | Drive motor power (S2-60min) | kw | 8 AC | 8 AC | 9.5 AC |
| 6.2 | Lift motor power, (S3-15%) | kw | 21 AC | 21 AC | 21 AC |
| 6.3 | Lead acid battery voltage /capacity | V/Ah | 80/560 | 80/560 | 80/700 |
| 6.4 | Battery weight | kg | 1530 | 1530 | 1840 |
| 6.5 | Steering system | EPS | EPS | EPS | |
| Other | |||||
| 7.1 | Battery replacement method | Side pull | Side pull | Side pull | |
| 7.2 | Lithium battery voltage/capacity | V/Ah | |||
Notice:
[1] The safety margin of the width of the main aisle of the magnetic guide model needs to be +900mm,
and the mechanical guide model needs to be +400mm;
[2] Optional lithium battery specification: 80V/450Ah or 80V/600Ah;
[3] Optional lead-acid battery Specifications: 80V/840Ah;
[4] Magnetic navigation function models, stacking net aisle width +50mm.
