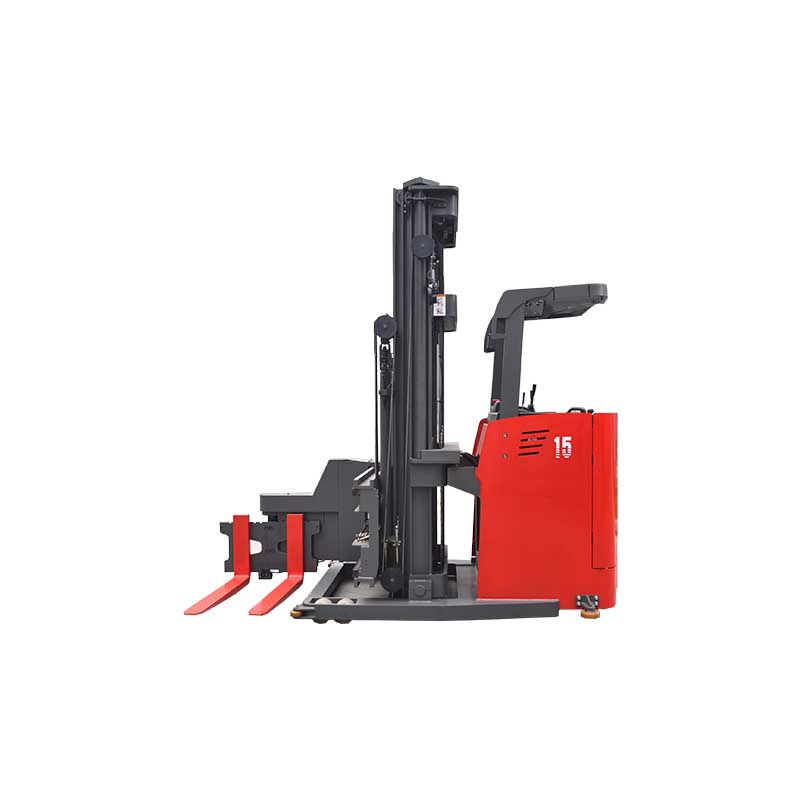

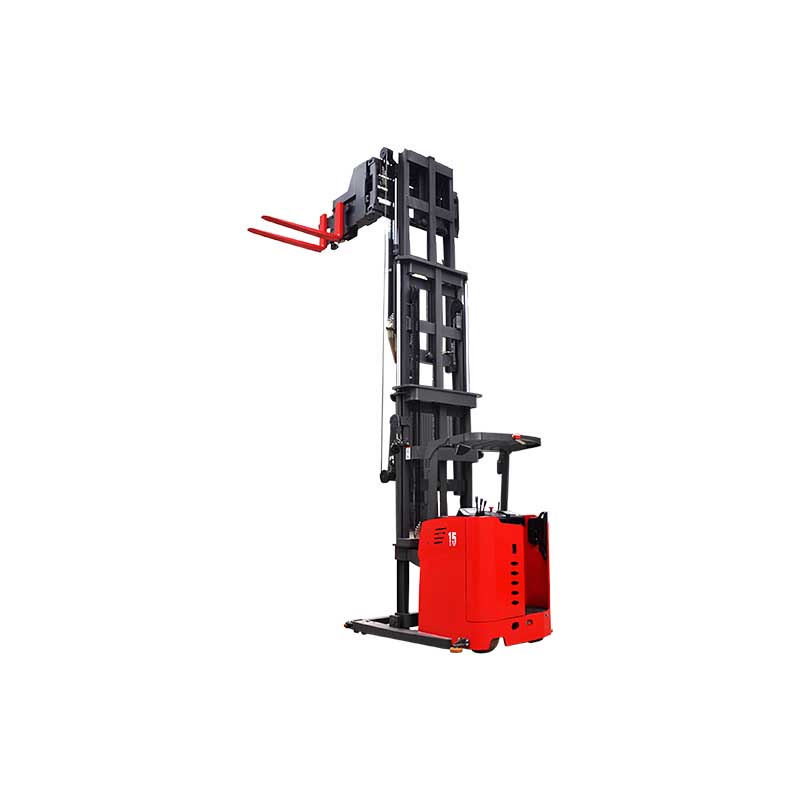

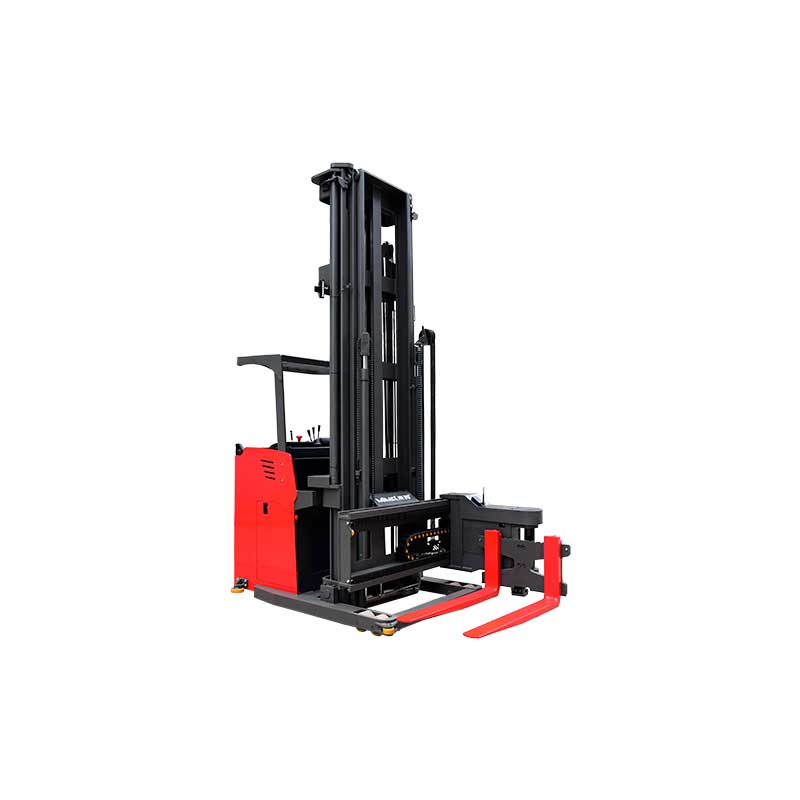

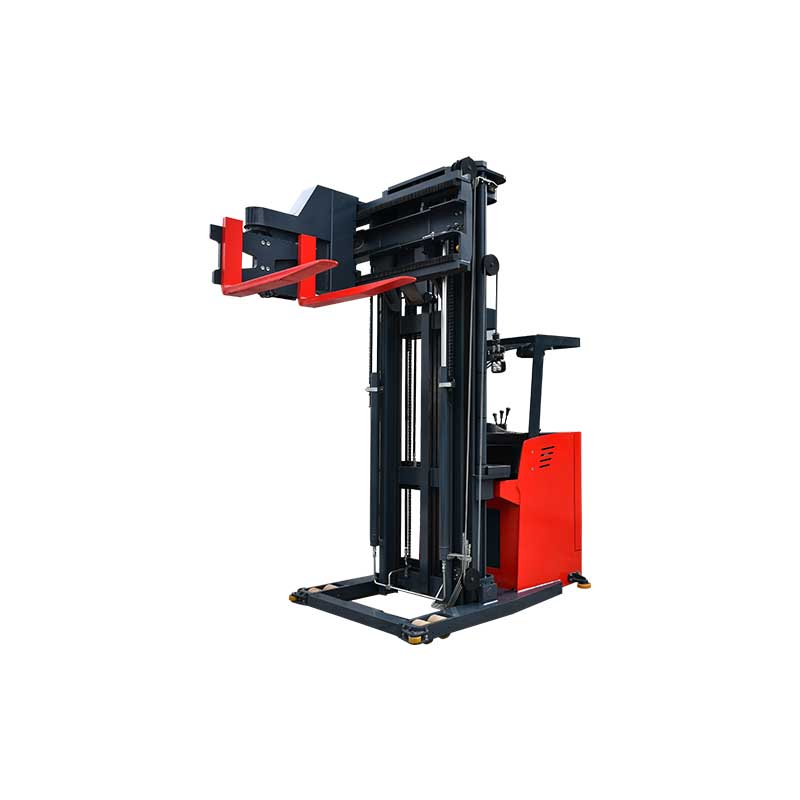

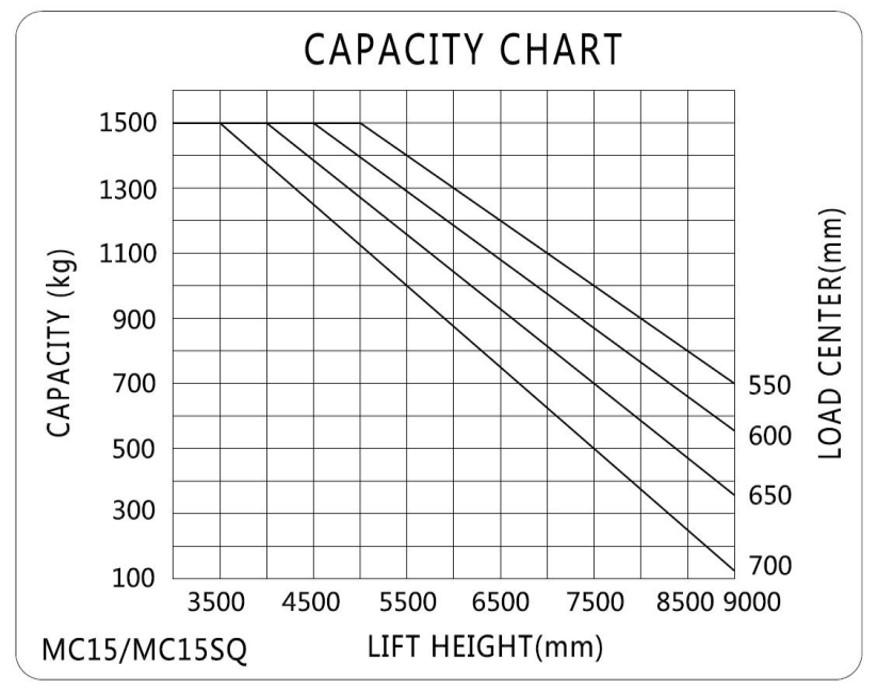

| Quantity: | |
|---|---|
| Standard | ||||
| 1.1 | Model | MC15（Duplex mast) | MC15（Triplex full free mast) | |
| 1.2 | Power type | Battery | Battery | |
| 1.3 | Driving style | Stand on | Stand on | |
| 1.4 | Rated load | Q(kg) | 1500 | 1500 |
| 1.5 | Load center | C(mm) | 600 | 600 |
| 1.6 | Axle load | x(mm) | 670 | 670 |
| 1.7 | Wheelbase | y(mm) | 1700 | 1700 |
| Weight | ||||
| 2.1 | Service weight(incl.battery) | kg | 4715 | 5545 |
| Wheel | ||||
| 3.1 | Wheel type | PU | PU | |
| 3.2 | Load wheel size | mm | φ140×127 | φ140×127 |
| 3.3 | Drive wheel size | mm | φ380×165 | φ380×165 |
| 3.4 | Auxiliary wheel size | mm | φ204×76 | φ204×76 |
| 3.5 | Number of wheels,front/rear(x=drive wheel) | 4 /1x+2 | 4 /1X+2 | |
| 3.6 | Wheel tread,drive side | b10(mm) | 726 | 726 |
| 3.7 | Wheel tread,load side | b11(mm) | 1280 | 1280 |

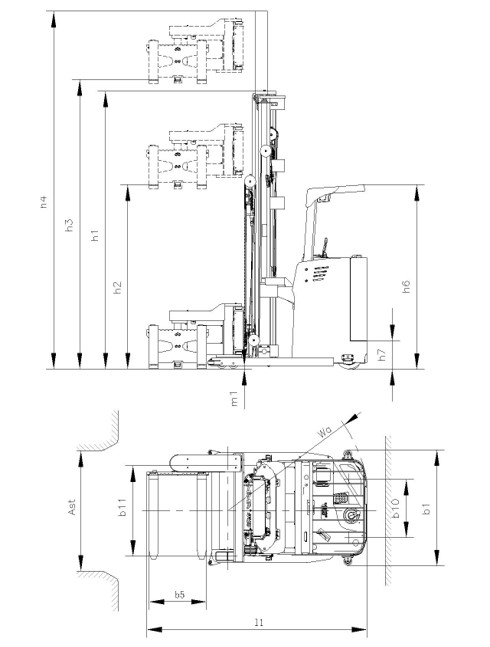

| Size | ||||
| 4.1 | Mast closed height | h1(mm) | refer to mast specification | refer to mast specification |
| 4.2 | Free lift height | h2(mm) | 0 | refer to mast specification |
| 4.3 | Lift height | h3(mm) | refer to mast specification | refer to mast specification |
| 4.4 | Mast extended height with load backrest | h4(mm) | 4040 | 5555 |
| 4.5 | Overhead guard height | h6(mm) | 2260/2300 | 2260/2300 |
| 4.6 | Stand on height | h7(mm) | 355 | 355 |
| 4.7 | Overall length | l1(mm) | 2985 | 2985 |
| 4.8 | Overall width | b1(mm) | 1550 | 1550 |
| 4.9 | Fork size | l/e/s(mm) | 1200/125/50 | 1200/125/50 |
| 4.10 | Installation level | II A | II A | |
| 4.11 | Fork outside width | b5(mm) | 265~760 | 265~760 |
| 4.12 | Min.ground clearance | m1(mm) | 40 | 40 |
| 4.13 | Aisle width for pallet 1200x1200mm | Ast(mm) | 1600 | 1600 |
| 4.14 | Turning radius | Wa(mm) | 1980 | 1980 |
| 4.15 | Main aisle width(pallet 1200*1200mm) | mm | ≥3800mm | ≥3800mm |
| Function | ||||
| 5.1 | Driving speed (load/unload) | km/h | 7.5/8 | 7.5/8 |
| 5.2 | Lifting speed (load/unload) | mm/s | 260/300 | 260/300 |
| 5.3 | Lowering speed (load/unload) | mm/s | 360/390 | 360/390 |
| 5.4 | Braking method | Mechanical | Mechanical | |
| Driving | ||||
| 6.1 | Drive motor power (S2-60min) | kw | 5.5 AC | 5.5 AC |
| 6.2 | Lift motor power (S3-15%) | kw | 12.8 AC | 12.8 AC |
| 6.3 | Lead acid battery, voltage/capacity | V/Ah | 48/480 | 48/480 |
| 6.4 | Battery weight | kg | 765 | 765 |
| 6.5 | Steering system | Electric power steering | Electric power steering | |
| Other | ||||
| 7.1 | Battery replacement method | Side pull | Side pull | |
| 7.2 | Lithium battery voltage/capacity | V/Ah | ||
Notice:
[1] Optional models with standard magnetic navigation function, stacking aisle width 1650mm, turning radius 2050mm, whole length 3055mm;
[2] Optional lithium battery specification 48V/300Ah，48V400Ah;
[3] Select the standard electric fork model , and the width of stacking aisle is 1600mm
