| Quantity: | |
|---|---|
| Standard | ||||
| 1.1 | Model | MG30 | ||
| 1.2 | Power type | Battery | ||
| 1.3 | Driving style | Stand-on | ||
| 1.4 | Wheel base | y(mm) | 975 | |
| Weight | ||||
| 2.1 | Service weight(incl. battery) | kg | 550 | |
| 2.2 | Axle loading(unloaded) drive side/load side | kg | 350/200 | |
| 2.3 | Battery weight | kg | 200 | |
| Wheel | ||||
| 3.1 | Wheel type | Rubber | ||
| 3.2 | Tire size,drive side | mm | Φ230×70 | |
| 3.3 | Tire size,load side | mm | Φ150×60 | |
| 3.4 | Number of wheels,front/back(x=drive wheel) | 1X/2 | ||
| 3.5 | Wheel tread, drive side | b3(mm) | / | |
| 3.6 | Whee tread, load side | b2(mm) | 770 | |
| Size | ||||
| 4.1 | Overall height | h14 | 1480 | |
| 4.2 | Towing coupling height | h10(mm) | 140-240 | |
| 4.3 | Stand height | h2(mm) | 97 | |
| 4.4 | Overall length | l1(mm) | 1300 | |
| 4.5 | Overall width | b1(mm) | 850 | |
| 4.6 | Ground clearance(centre of wheelbase) | m2(mm) | 50 | |
| 4.7 | Turning radius | Wa(mm) | 1160 | |
| Function | ||||

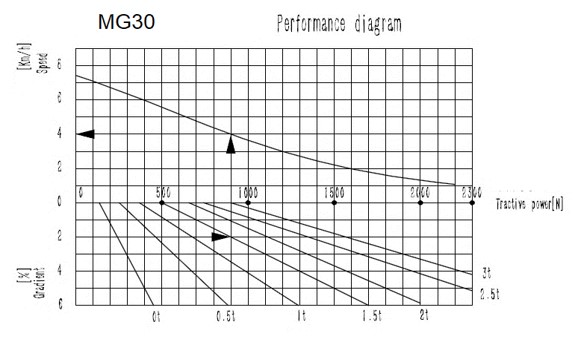

| 5.1 | Travel speed(load/unloaded) | km/h | Refer to the performance diagram | |
| 5.2 | Rated drawbar pull | F(N) | 750 | |
| 5.3 | Max. gradeability(load/unloaded)(S2-5min) | %(tanθ ) | Refer to the performance diagram | |
| 5.4 | Brake | Electromagnetic | ||
| Drive | ||||
| 6.1 | Drive motor power(S2-60 min) | kw | 1.5(AC) | |
| 6.2 | Battery voltage/capacity | V/Ah | 24/210 | |
| 6.3 | Steering System | Mechanical | ||
| Other | ||||
| 7.1 | Battery replacement method | Hoisting | ||
